Toyota bZ4X Owner's Manual: Other interior features

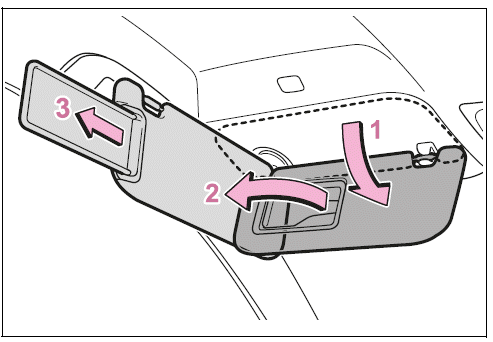

Sun visors

1. To set the visor in the forward position, flip it down.
2. To set the visor in the side position, flip down, unhook, and swing it to the side.
3. To use the side extender (if equipped), place the visor in the side position, then slide it backward.

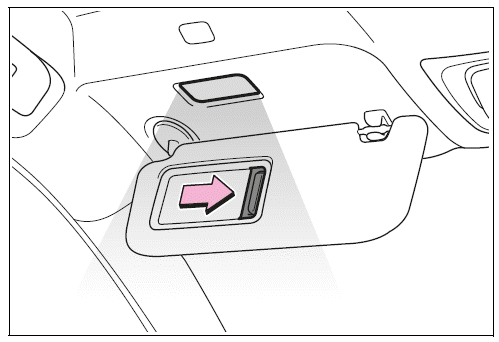

Vanity mirrors

Slide the cover to open.

The light turns on when the cover is opened.

Vanity lights

If the vanity lights remain on when the power switch is turned off, the lights will go off automatically after 20 minutes.

NOTICE

To prevent 12-volt battery discharge

Do not leave the vanity lights on for extended periods while the EV system is off.

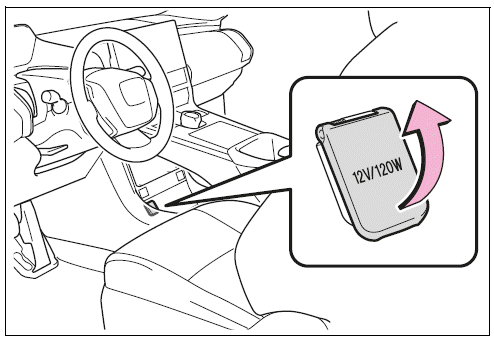

Power outlet

Please use a power supply for electronic goods that use less than 12 VDC /10 A (power consumption of 120 W).

When using electronic goods, make sure that the power consumption of all the connected power outlets is less than 120 W.

Open the lid.

When the Power Outlet Can Be Used

The power outlet in your vehicle can be used when the power switch is in either the 'ACC' (Accessory) or 'ON' mode.

Important Note When Stopping the EV System

Before turning off your vehicle's EV system, make sure to disconnect any electrical devices that have charging functions, such as portable mobile battery packs, from the power outlets. Leaving such devices connected might prevent the EV system from stopping normally.

NOTICE - Precautions Regarding the Power Outlet

When the Power Outlet is Not in Use:

To prevent potential damage to the power outlet, always close its protective lid when it is not being used. Foreign objects or liquids that accidentally enter the power outlet can create a risk of a short circuit.

To Prevent 12-Volt Battery Discharge:

To avoid draining your vehicle's 12-volt battery, do not use the power outlet for longer than necessary when the main EV system is turned off. Prolonged use in this state can lead to battery depletion.

To Prevent Incorrect Vehicle Operation:

When you are turning off the vehicle's power switch, ensure that you disconnect any accessories designed for charging, such as portable chargers or power banks, from the power outlets. Leaving these types of accessories connected could lead to the following issues:

• The doors might not be able to be locked properly.
• The opening screen of the system might be displayed on the multi-information display.
• The interior lights, instrument panel lights, and other similar lights might illuminate unexpectedly.

USB Type-C Charging Ports

Your 2025 Toyota bZ4X is equipped with USB Type-C charging ports that are designed to supply up to 3 Amps of electricity at 5 Volts to power and charge compatible external devices.

It is important to note that these USB Type-C ports are specifically intended for charging purposes only. They are not designed to support data transfer or any other functionalities beyond supplying electrical power.

Depending on the specific external device you are trying to charge, it might not charge correctly or as expected. Always refer to the user manual or instructions included with your external device before using a USB charging port in your vehicle to ensure compatibility and proper operation.

For information regarding the USB Type-A ports in your vehicle, please refer to the "MULTIMEDIA OWNER'S MANUAL" provided with your vehicle.

Using the USB Type-C charging ports

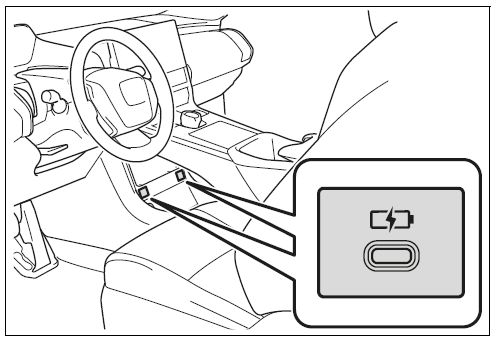

Center console

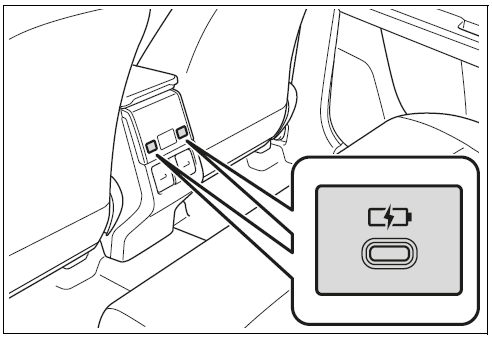

Rear (if equipped)

USB Type-C Charging Ports – Usage and Important Considerations

The USB Type-C charging ports in the 2025 Toyota bZ4X provide a convenient and efficient way to power various portable devices while driving. These ports can be used when the vehicle's power switch is set to ACC or ON, allowing occupants to charge their devices without requiring additional adapters.

Potential Charging Limitations

Despite their versatility, USB Type-C charging ports may not function correctly in certain circumstances. These include:

• Devices that require more than 3 A at 5 V might not charge properly.
• External devices designed for data communication with computers, such as USB memory drives, may not be compatible.
• If the connected device is turned off, charging functionality may be temporarily interrupted.
• High temperatures inside the vehicle-such as after prolonged exposure to direct sunlight-can affect charging performance.

Understanding External Device Behavior

Some external devices may exhibit intermittent charging behavior, temporarily pausing and resuming charging. This fluctuation is often a normal part of the device's internal power management system and does not indicate a malfunction.

Preventing Damage to USB Type-C Charging Ports

To maintain optimal performance and prevent damage, adhere to the following precautions:

• Avoid inserting foreign objects into the ports.
• Prevent liquids from entering the ports to avoid short circuits or corrosion.
• Do not apply excessive force when inserting or removing cables.
• Refrain from modifying, tampering with, or disassembling the charging ports.

Protecting External Devices

• Never leave electronic devices in the vehicle for extended periods, as high interior temperatures may cause damage.
• Ensure cables are properly positioned to prevent undue stress or bending that could impact device functionality.

Battery Preservation Considerations

For long-term battery health, avoid prolonged use of the USB Type-C charging ports when the EV system is turned off, as this can lead to unnecessary battery drain.

Wireless Charging Capability (If Equipped)

The 2025 Toyota bZ4X is equipped with a Qi-standard wireless charging pad, allowing users to charge compatible devices such as smartphones and mobile power banks simply by placing them in the designated charging area. However, devices larger than the tray may not charge properly.

To determine compatibility, refer to the official Wireless Power Consortium website, and always consult the manufacturer's user manual for optimal operation.

With its advanced USB Type-C and wireless charging features, the 2025 Toyota bZ4X offers a cutting-edge power management solution for modern driving needs, ensuring seamless connectivity and efficiency on every journey.

The "Qi" symbol

The "Qi" symbol is a trademark of the Wireless Power Consortium.

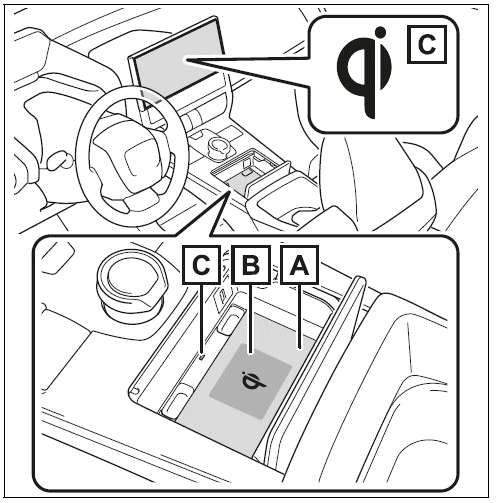

Name for all parts

1. Charging tray
2. Charging area*
3. Operation indicator light

*: Portable devices and wireless chargers contain charging coils.

Wireless Charger – Intelligent Charging & Enhanced Functionality

The wireless charging system in the 2025 Toyota bZ4X features a dynamic charging coil that moves within the charge area near the center of the charging tray. When a Qi-compatible portable device is detected, the coil inside the wireless charger adjusts to align with the device's charging coil, ensuring optimal power transfer. If the device’s coil moves beyond the charge area, charging will cease automatically.

It's important to note that placing multiple devices on the charging tray may prevent proper coil detection, leading to ineffective charging.

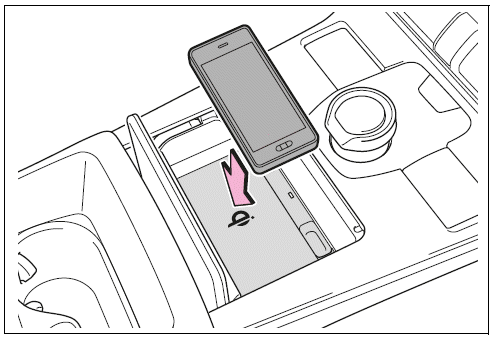

Using the Wireless Charger

Follow these steps to ensure efficient charging:

1. Open the lid to access the charging tray.
2. Place the portable device onto the charging surface.

Ensure that the charging side of the device faces downward and its center aligns with the middle of the charge area. Since the charging coil placement varies by device, it may be necessary to adjust positioning for optimal alignment.

When charging begins, an orange operation indicator light will turn on. If charging does not initiate, reposition the device closer to the center of the charge zone. If charging remains inactive, the indicator light may slowly alternate between green and orange while an internal coil adjustment sound is heard.

Upon successful charging completion, the operation indicator light will turn green.

Recharging Function

• Charging resumes automatically after a short suspension period once the initial charge cycle completes.
• If a device moves significantly within the charge area, the wireless charger will temporarily stop. However, as long as a charging coil remains within range, the system will reposition and restart charging.

Rapid Charging Function

• Certain portable devices support higher-speed charging, including:

• Devices compliant with WPC Ver1.2.4 and optimized for rapid charging.
• iPhones with an iOS version supporting 7.5 W charging (iPhone 8 and later models).

• Rapid charging is automatically enabled when a compatible device is detected, improving charging efficiency.

By leveraging intelligent charging coil movement and rapid power transfer functionality, the wireless charger in the 2025 Toyota bZ4X delivers superior convenience and efficiency, ensuring that drivers and passengers can power their devices effortlessly while on the road.

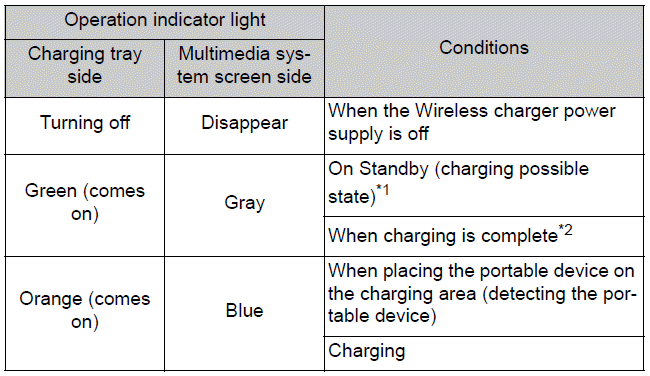

Lighting conditions of operation indicator light

*1:Charging power will not be output during standby. A metallic object will not be heated, if it is placed on the charging tray in this state.

*2:Depending on the portable device, there are cases where the operation indicator light will continue being lit up orange even after the charging is complete.

Operation indicator light:

Charging tray side:

• Turning off
• Green (comes on)
• Orange (comes on)

Multimedia system screen side:

• Disappear
• Gray
• Blue

Conditions:

When the Wireless charger power supply is off

On Standby (charging possible state)*1

When charging is complete*2

When placing the portable device on the charging area (detecting the portable device)

Charging

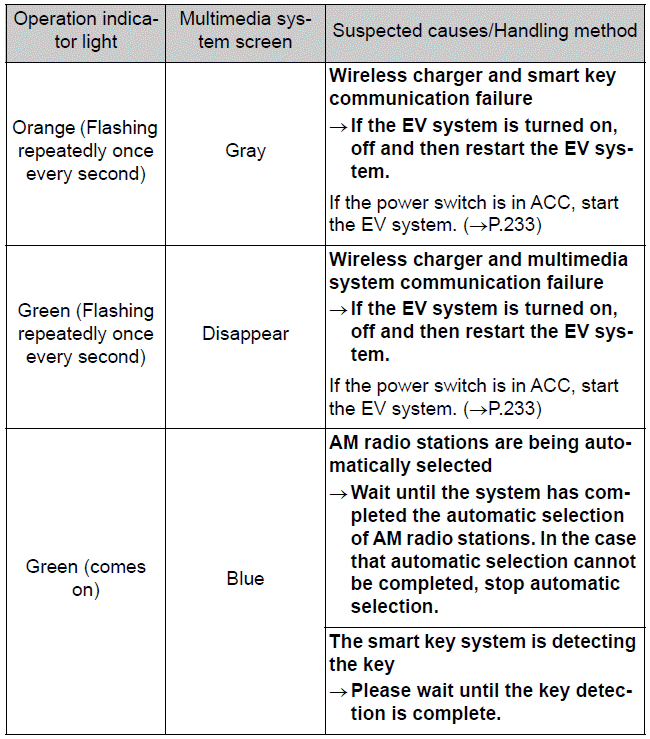

The wireless charger is not working properly

The following are situations in which the wireless charger does not work properly and how to deal with the possible causes.

Operation indicator light:

Orange (Flashing repeatedly once every second)

Green (Flashing repeatedly once every second)

Green (comes on)

Multimedia system screen:

Gray

Suspected causes/Handling method:

Wireless charger and smart key communication failure

• If the EV system is turned on, off and then restart the EV system.

If the power switch is in ACC, start the EV system.

Disappear

Suspected causes/Handling method:

Wireless charger and multimedia system communication failure

• If the EV system is turned on, off and then restart the EV system.

If the power switch is in ACC, start the EV system.

Blue

Suspected causes/Handling method:

AM radio stations are being automatically selected

• Wait until the system has completed the automatic selection of AM radio stations. In the case that automatic selection cannot be completed, stop automatic selection.

The smart key system is detecting the key

• Please wait until the key detection is complete.

Operation indicator light:

Orange (Repeatedly flashes 3 times continuously)

Multimedia system screen:

Gray

Suspected causes/Handling method:

Foreign substance detection: A metallic foreign substance is in the charge area, and so the abnormal heating prevention function of the metallic foreign substance operated

• Remove the foreign substance from the charge area.

Portable device misaligned:

• The charging coil in the portable device moved outside of the charge area, and so the abnormal heating prevention function operated.

Orange (Repeatedly flashes 4 times continuously)

Multimedia system screen:

Gray

Suspected causes/Handling method:

Safety shutdown resulting when the temperature within the wireless charger exceeded the set value

• Stop charging, remove the portable device from the charging tray, wait for the temperature to drop, and then start charging again.

The wireless charger can be operated when

The power switch is in ACC or ON.

Wireless Charging – Compatible Devices, Usage, and Safety Precautions

The wireless charging system in the 2025 Toyota bZ4X supports Qi-compatible portable devices. However, while the system is engineered for compatibility with Qi Ver. 1.0 and later versions, full functionality across all versions-including Qi Ver. 1.2.4 and beyond-is not guaranteed.

Charging Power Output

The wireless charger primarily provides low-power electricity (5 W or less), suitable for smartphones and similar mobile devices. However, certain devices can charge at higher wattages:

• iPhones supporting 7.5 W charging can receive up to 7.5 W.
• Portable devices compliant with WPC Ver. 1.2.4 (Extended Power Profile) can charge at up to 10 W.

Charging Considerations When Using Device Covers and Accessories

Not all device covers and accessories are Qi-compatible. If a device fails to charge, removing its cover or accessories may resolve the issue. Certain manufacturer-provided cases or aftermarket add-ons can interfere with the charging process.

AM Radio Noise Reduction During Charging

• To minimize interference, the charging frequency is automatically adjusted when AM radio noise is detected.
• When scanning for AM stations, charging is briefly suspended to prevent noise detection errors. Charging resumes once the scan is complete.

Charging Precautions

• If the electronic key cannot be detected inside the vehicle, charging will not occur.
• Opening and closing a door may cause a temporary suspension of charging.
• While charging, both the wireless charger and the portable device may become warm. If overheating occurs and charging stops due to the device's built-in protection system, allow the device to cool before attempting to charge again.
• Due to power management differences, some devices may not fully charge while in use. This is normal operation.

Additional Wireless Charging Considerations

• If the electronic key is outside the vehicle, charging will not function.
• Charging suspension may occur briefly when opening or closing a door.
• The wireless charger has a built-in cooling system. If internal temperatures rise, a fan may activate-this is a normal function, not a malfunction.

Sounds Generated During Operation

Operation sounds may be heard when turning on the power supply or identifying a portable device. These noises are expected and do not indicate a malfunction.

Cleaning the Wireless Charger

Keeping the charging tray free of dust and debris ensures optimal performance. Use a soft cloth to wipe away any particles without applying excessive pressure.

Trademark Information

• iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
• Galaxy is a trademark or registered trademark of Samsung Electronics Co., Ltd.

Important Safety Warnings

Driver Safety Considerations

• For safety, drivers should avoid handling their portable device while charging and operating the vehicle.
• Do not charge lightweight devices such as wireless headphones while driving, as they may slip from the tray and cause distractions.

Medical Device Precautions

• Individuals with implantable medical devices, such as pacemakers or cardioverter defibrillators, should consult their physician before using wireless charging to avoid interference.

Preventing Malfunctions and Burns

• Avoid inserting metallic objects between the charging tray and the device.
• Do not attach metallic stickers to the charging area or device.
• Do not use the charging tray as a storage compartment.
• Keep charging surfaces clean and free from dust.

Situations Where Charging May Not Function Correctly

• The portable device has reached full charge.
• The device is also charging via a USB cable.
• Foreign materials are present between the charging tray and the device.
• Device overheating has triggered protective shutdown.
• The surrounding temperature exceeds 95°F (35°C).
• The device is misaligned from the charge area.
• The device is larger than the charging tray.
• The device has protrusions exceeding 3 mm, such as thick cases or raised accessories.

Precautions to Prevent Data Corruption

• Keep credit cards and magnetic storage media away from the charge area to prevent data loss.
• Avoid charging a device with a non-contact IC card attached, as excessive heat may cause damage.
• Do not leave devices inside the vehicle in extreme temperatures.

Abnormal Charging or Continuous Indicator Flashing

If charging malfunctions persist or the indicator flashes repeatedly, contact a Toyota dealer for further inspection.

With Qi-standard wireless charging integrated into the 2025 Toyota bZ4X, drivers and passengers can experience effortless device powering while on the move. Proper usage and awareness of environmental conditions ensure that charging remains seamless, efficient, and safe.
