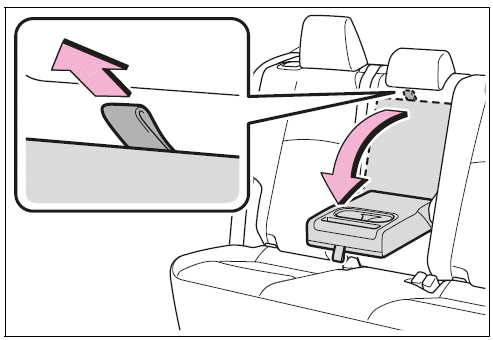

Fold down the armrest for use.
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.

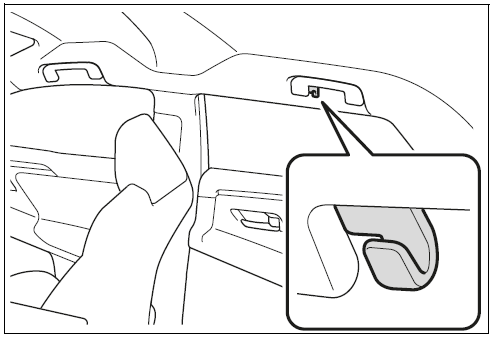

Coat hooks
The coat hooks are provided with the rear assist grips.
WARNING
Items that must not be hanged on the hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
Assist grips

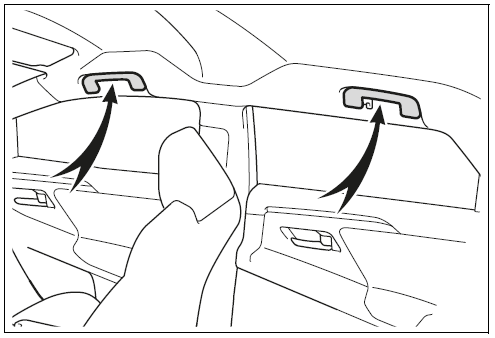

An assist grip installed on the ceiling can be used to support your body while sitting on the seat.
WARNING
Assist grips
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
Garage Door Opener – Integrated HomeLink Control System
The HomeLink-equipped garage door opener in the 2025 Toyota bZ4X allows drivers to conveniently operate multiple automated systems, including garage doors, gates, entry locks, home lighting configurations, security setups, and more-all from within the vehicle.
HomeLink Programming Procedure
To ensure proper synchronization with supported devices, follow the step-by-step instructions available through the manufacturer’s official resources. Detailed programming procedures can be accessed at the provided URL, which offers guidance specific to different systems.
If additional support is required, customer service assistance is available to help troubleshoot connectivity and programming concerns.

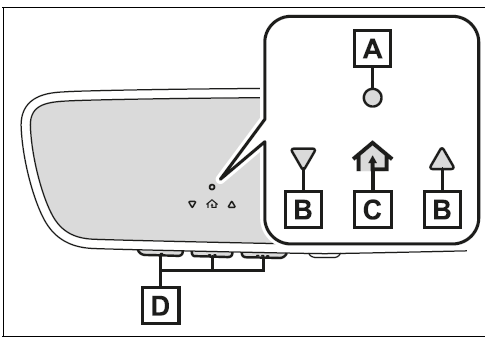

System Components and Functionality
The HomeLink wireless control system integrates three programmable buttons, each capable of operating a separate device. These buttons can be individually configured to control multiple systems, providing enhanced convenience and ease of access.
Depending on the type of device being connected, specific programming methods are required. Consult the official documentation to determine the procedure that best suits your needs.
The HomeLink system brings added efficiency to modern vehicles by reducing the need for external remote controls, streamlining the automation of home and security systems while ensuring a seamless connection from your vehicle.

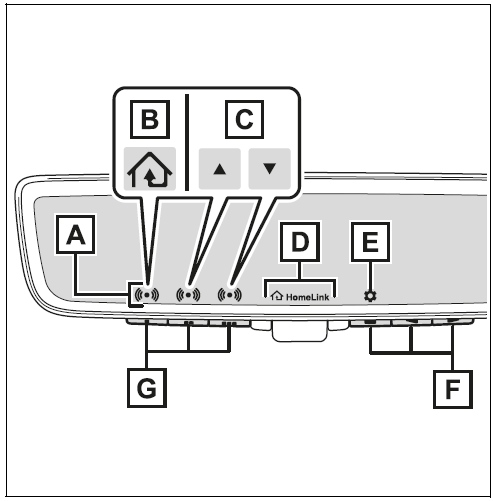

Illuminates while HomeLink is operating.
Illuminates above each button selected.
Appears while HomeLink is operating.
When the HomeLink button is pressed, the logo disappears even while the HomeLink is operating.
Press the menu button to change the setting.
HomeLink Garage Door Opener – Programming and Safety Considerations
Codes Stored in HomeLink Memory
Certification & Safety Precautions
WARNING
Safety Precautions During HomeLink Programming
Federal Safety Standard Compliance
Responsible HomeLink Usage
Programming HomeLink – Preparations and Best Practices
Before Programming HomeLink
The HomeLink system in the 2025 Toyota bZ4X enhances convenience by integrating multiple programmable controls, eliminating the need for separate remote transmitters. By following these safety precautions and programming guidelines, users can set up the system efficiently while ensuring secure operation.
Programming HomeLink
Steps 2 through 4 must be performed within 60 seconds, otherwise the HomeLink indicator light will stop flashing and programming will not be successfully completed.
When the HomeLink button is pressed: Homelink Training Tutorial will be displayed to assist you programming the HomeLink.
When Homelink Training Tutorial is displayed, follow the instructions displayed.
When the menu button is pressed:
Press the menu button
and
select the "Set Up >". Homelink
Training Tutorial will be displayed to
assist you programming the Home-
Link.
When Homelink Training Tutorial is displayed, follow the instructions displayed.

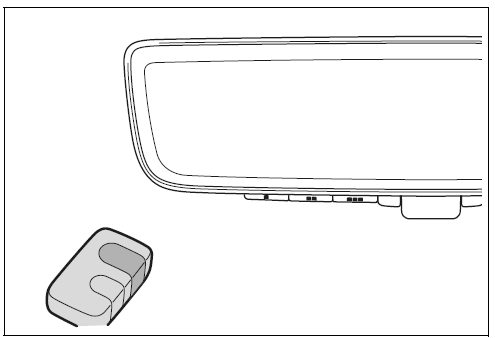

Keep the HomeLink indicator light in view while programming.

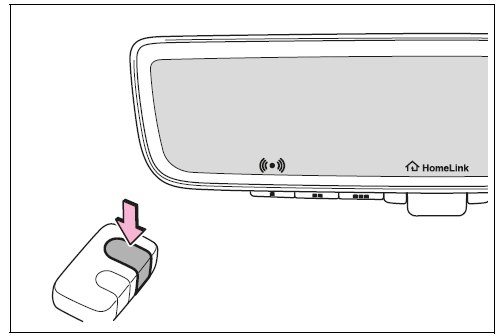

Press and hold the remote control transmitter button until the HomeLink indicator light changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously lit green (fixed code), then release the button.
Press and release the remote control transmitter button at 2 second intervals, repeatedly, until the HomeLink indicator light changes from slowly flashing orange to rapidly flashing (green) (rolling code) or continuously lit (green) (fixed code).
The garage door or other device should operate when a HomeLink button is pressed and released.

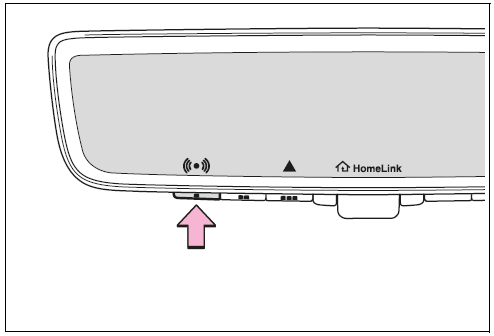

To complete programming, firmly press and hold the HomeLink button for 2 seconds then release it.
Programming a rolling code system
Two or more people may be needed to complete rolling code programming.

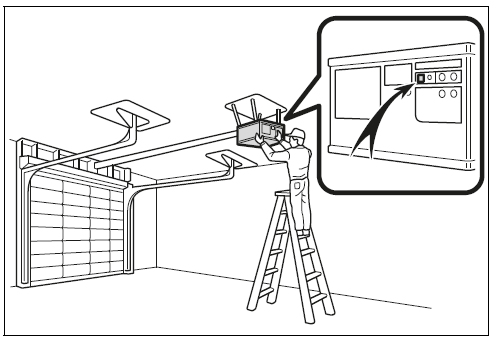

This button can usually be found where the hanging antenna wire is attached to the unit. The name and color of the button may vary by manufacturer. Refer to the owner's manual supplied with the garage door opener motor for details.
Perform 3 within 30 seconds after performing 2.
If the garage door opener motor operates when the HomeLink button is pressed, the garage door opener motor recognizes the HomeLink signal.
HomeLink Garage Door Opener – 2-Way Communication & Programming
Enabling 2-Way Communication with a Compatible Garage Door
The HomeLink system in the 2025 Toyota bZ4X offers 2-way communication capabilities for supported garage door openers. This feature provides real-time status updates on the opening and closing of the garage door, displayed via indicators within the vehicle.
Steps to Activate 2-Way Communication
Reprogramming a Single HomeLink Button
If an existing HomeLink button needs to be updated with a new device code, follow this process:
Preparations Before Programming HomeLink
Operating HomeLink
To activate a programmed function, press the corresponding HomeLink button. The HomeLink indicator should illuminate, signaling that the command has been transmitted.

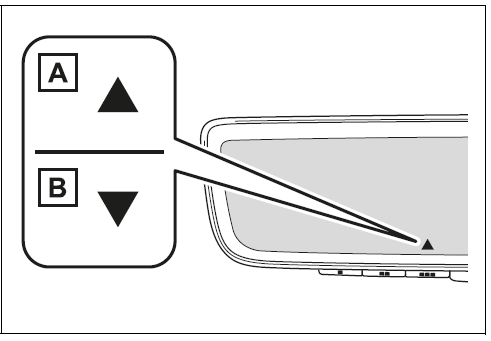

The vehicle’s garage door operation indicators will reflect the current movement status of the door, ensuring drivers have visual confirmation of whether the door is opening or closing.
With seamless 2-way communication, programmable buttons, and intuitive operation, HomeLink technology in the 2025 Toyota bZ4X adds convenience and security, allowing drivers to control garage doors, gates, and home automation systems effortlessly.

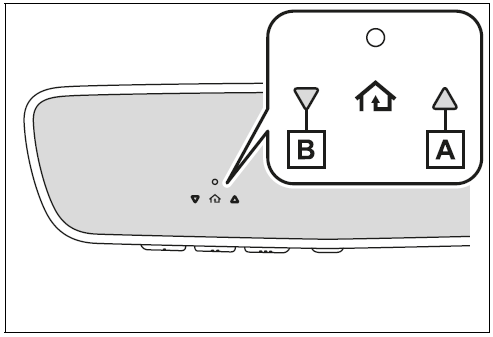

Vehicles with auto anti-glare inside rear view mirror
This function is only available if the garage door opener motor used is a compatible device.
Color -Status
Orange (flashing) - Currently opening/ closing
Green - Opening/closing has completed
Red (flashing) - Feedback signals cannot be received
To recall the previous door operation
status, press and release
either HomeLink buttons
and
or
and
(vehicles
with auto anti-glare inside rear
view mirror),
and
or
and
(vehicles
with Digital Rear-view Mirror)
simultaneously. The last
recorded status will be displayed
for 3 seconds.
Erasing the entire Home- Link memory (all three codes)

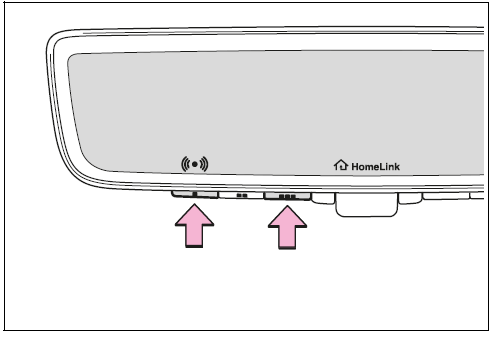

Press and hold the 2 outside buttons for 10 seconds until the HomeLink indicator light changes from continuously lit (orange) to rapidly flashing (green).
If you sell your vehicle, be sure to erase the programs stored in the HomeLink memory.
