Toyota bZ4X Owner's Manual: Air Conditioning Filter

The air conditioning filter is a critical component for delivering fresh, cool air into the cabin, and it must be replaced regularly to ensure optimal performance of the air conditioning system.

Over time, dust, pollen, and a variety of airborne pollutants accumulate within the filter. This buildup can significantly reduce the efficiency of the system by restricting airflow and forcing it to work harder to maintain the desired temperature. Regular replacement or cleaning of this filter not only helps maintain the system’s efficiency but also improves the overall air quality inside your vehicle’s cabin.

Routine maintenance of the air conditioning filter is essential. Depending on your driving conditions and environment, it is advisable to consult your vehicle’s owner’s manual for the recommended replacement intervals. Keeping the filter in top condition can prevent common issues such as decreased cooling performance, unpleasant odors, and potential overuse of the air conditioning compressor.

By ensuring that your filter is changed on schedule, you protect the operating efficiency of the entire air conditioning system, reduce energy consumption, and ultimately extend the lifespan of the system. This simple maintenance task is especially important if you want to maintain a consistently comfortable and healthy environment inside your vehicle.

For owners of the Toyota bZ4X, such preventive care is integral to preserving the vehicle's innovative climate control features, ensuring that every journey is enjoyed in a refreshing, well-regulated cabin environment.

Removal method

1. Turn the power switch off.

Confirm that the charging connector is not connected. Also, do not use the Remote Air Conditioning System during the procedure.

2. Open the front passenger's door.

By keeping the door open, unexpected operation of the Remote Air Conditioning System can be prevent.

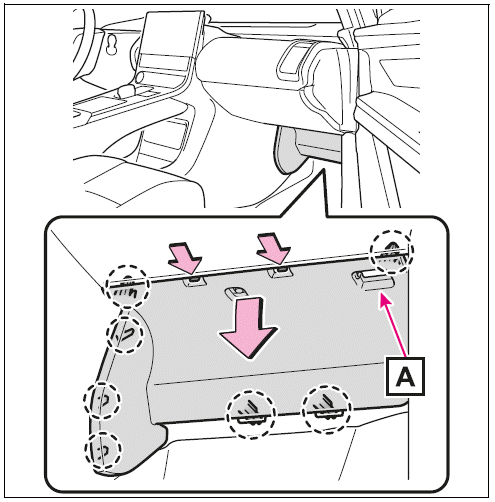

3. While pressing the claw, hold handle (A) and remove the panel.

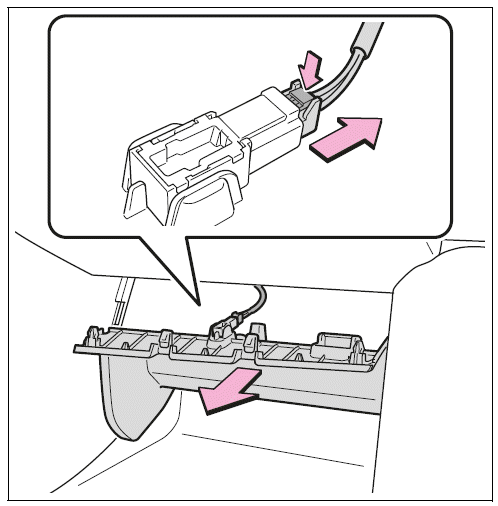

4. Vehicles with footwell lights: Unplug the connector.

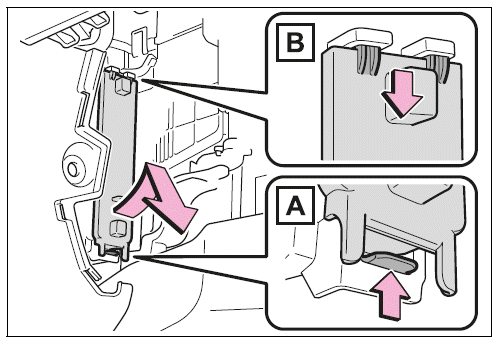

5. Unlock the filter cover ( A), pull the filter cover out of the claws (B ), and remove the filter cover.

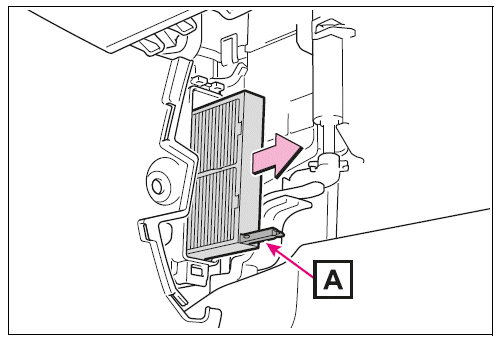

6. Hold the filter case (A) and remove the lower filter case.

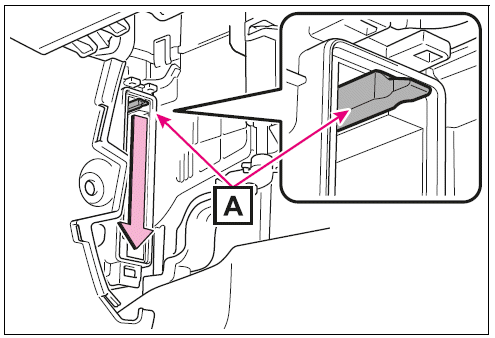

7. Hold the filter case (A) and pull down the upper filter case.

8. Hold the filter case (A) and remove the upper filter case.

Dust and dirt (fallen leaves, etc.) may have accumulated within the bottom of the air conditioning unit, so remove it with a vacuum cleaner.

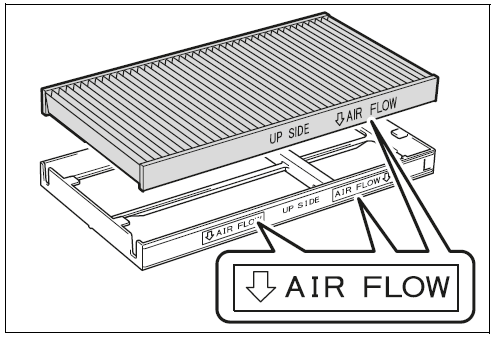

9. Remove the air conditioning filter from the upper and lower filter case and replace it with a new one.

Install so that the arrow points to the rear of the vehicle.

10. When installing, reverse the steps listed.

When installing the filter cover

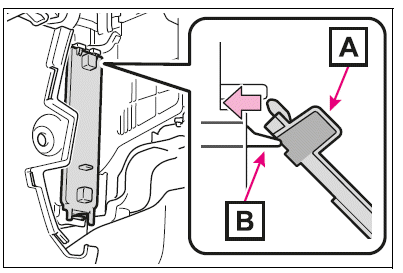

Slide the recessed part(A) of the filter cover on the upper surface of the upper filter case (B) as shown in the figure, and attach it so that it is lifted toward the insertion part of the cover attachment.

Checking Interval

To maintain optimal air conditioning efficiency, inspect and replace the filter according to your maintenance schedule. In high-dust environments or areas with heavy traffic, early replacement might be required. For detailed guidance, refer to the "Owner's Manual Supplement" or "Scheduled Maintenance" documentation.

If Air Flow from the Vents Decreases Dramatically

A pronounced reduction in airflow typically indicates that the filter is clogged. In such cases, inspect the filter immediately and replace it if necessary to restore proper performance.

WARNING

When Replacing the Air Conditioning Filter

Be sure to observe all safety precautions during filter replacement, as failing to do so can inadvertently cause the air conditioning system to operate during the procedure, potentially resulting in injury.

• Ensure that the charging connector is disconnected before starting.
• Do not use the Remote Air Conditioning System while replacing the filter.

NOTICE

When Using the Air Conditioning System

• Always ensure that a proper filter is installed. Operating the system without one may cause damage to critical components.
• The air conditioning filter is replaceable; however, when cleaning it, avoid using water or air guns, as these can damage the filter material.

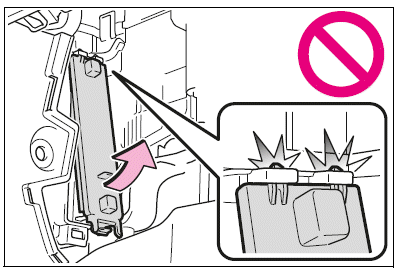

To Prevent Damage to the Filter Cover

When releasing the filter cover by moving it in the indicated direction, be careful not to apply excessive force on the claws. Doing so may cause permanent damage to the cover.

Regular maintenance of your air conditioning filter is essential for preserving system efficiency, ensuring clean air circulation, and avoiding costly repairs. For owners of the Toyota bZ4X, following these recommendations guarantees a consistently comfortable cabin environment and helps maintain the high performance of your climate control system.

By integrating these care routines into your regular service schedule, you not only extend the life of the air conditioning system but also contribute to a healthier, more enjoyable driving experience.
