Toyota bZ4X Owner's Manual: Understanding and Adjusting Your 2025 Toyota bZ4X Climate Control System

Modifying the Temperature Settings

To adjust the temperature inside your 2025 Toyota bZ4X, locate the temperature control switch on the climate control panel. Gently push the switch upwards to increase the set temperature for a warmer cabin, or downwards to decrease it for a cooler environment.

It's important to note that if the "A/C" (Air Conditioning) button is not engaged, the system will only blow ambient outside air or heated air, without providing active cooling or dehumidification.

Controlling the Fan Speed

The fan speed control switch allows you to regulate the intensity of the airflow within your 2025 Toyota bZ4X. Push the fan speed control switch upwards to increase the fan's speed and achieve a stronger airflow, or downwards to reduce the fan speed for a gentler breeze.

To completely turn off the climate control fan and stop all airflow, simply press the designated "OFF" switch located on the climate control panel.

Selecting the Airflow Mode

The airflow mode control switch enables you to direct the flow of air to different areas of the cabin. Operate this switch by pushing it upwards or downwards to cycle through the available airflow modes.

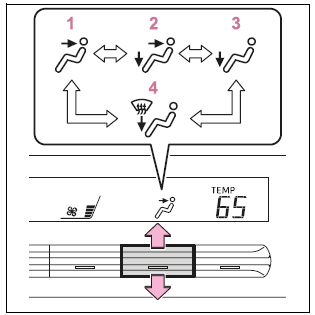

Each time you operate the airflow mode control switch, the system will cycle through the following modes:

1. Air will primarily flow to the vents directed at the upper body and face.
2. Air will be directed to both the upper body vents and the footwell area.
3. Air will flow mainly to the vents located in the footwell area to warm or cool the feet.
4. Air will be directed to the footwell vents, and simultaneously, the windshield defogger will activate to clear condensation from the windshield.

Switching Between Fresh Outside Air and Recirculated Air Modes

To select whether the climate control system draws in fresh air from outside the vehicle or recirculates the air already inside the cabin, press the dedicated outside/recirculated air mode switch.

Each press of this switch will toggle between the outside air mode (indicated by the absence of an illuminated indicator light) and the recirculated air mode (indicated by the indicator light being on). Recirculated air mode is useful for quickly cooling the interior or blocking outside odors.

Activating the Cooling and Dehumidification Function

To engage the air conditioning system for cooling and dehumidification in your 2025 Toyota bZ4X, press the "A/C" switch located on the climate control panel.

When the air conditioning function is active, an indicator light on the "A/C" switch will illuminate, confirming that the system is providing cooled and dehumidified air.

Defogging the Windshield

The defogger system in your Toyota bZ4X is designed to effectively clear fog or condensation from the interior surface of the windshield and the front side windows, ensuring optimal visibility.

To activate the windshield defogger, press the dedicated windshield defogger switch on the climate control panel.

For the most efficient windshield defogging, it is recommended to set the outside/recirculated air mode switch to the outside air mode, especially if the system was previously in recirculated air mode. In some cases, the system might automatically switch to outside air mode when the defogger is activated. To clear the windshield and side windows quickly, also increase the fan speed and adjust the temperature to a warmer setting.

Once the windshield is clear and visibility is restored, you can return the climate control system to its previous settings by pressing the windshield defogger switch again.

When the windshield defogger switch is active, its indicator light will illuminate, confirming that the system is working to clear the windshield.

Defogging the Rear Window and Outside Rear View Mirrors

Your 2025 Toyota bZ4X is equipped with defoggers for the rear window and the outside rearview mirrors. These are used to effectively remove fog, raindrops, dew, and frost, ensuring clear visibility to the rear and sides of your vehicle.

To activate these defoggers simultaneously, press the rear window and outside rearview mirror defogger switch, typically indicated by a specific symbol on the climate control panel.

For energy efficiency, the rear window and outside rearview mirror defoggers will automatically turn off after a set period to prevent excessive power consumption.

Windshield Wiper De-icer (If Equipped)

If your 2025 Toyota bZ4X is equipped with a windshield wiper de-icer system, this feature is designed to prevent ice from building up on the windshield area where the wiper blades rest, as well as on the blades themselves, ensuring they can operate effectively in snowy or icy conditions.

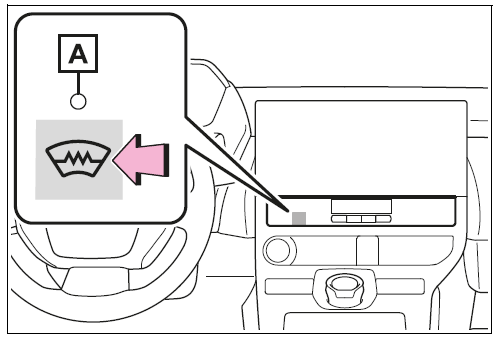

To activate the windshield wiper de-icer, press the dedicated windshield wiper de-icer switch, often located on the climate control stalk or a separate button on the dashboard.

When the windshield wiper de-icer is turned on, an indicator light (typically labeled with an 'A' or a specific symbol) will illuminate, confirming its operation.

Similar to the rear window defogger, the windshield wiper de-icer will automatically turn off after a certain period to prevent excessive energy use.

Understanding and Preventing Window Fogging

• The windows of your 2025 Toyota bZ4X can fog up more easily when the humidity level inside the vehicle is high. Activating the "A/C" switch will dehumidify the air coming from the vents, which is often the most effective way to clear condensation from the windshield and windows.
• If you turn the "A/C" switch off, especially in humid conditions, you might find that the windows fog up more readily due to the increased moisture content in the air.
• Using the recirculated air mode for extended periods can also contribute to window fogging, as the moisture from your breath and the passengers remains trapped inside the vehicle.

Climate Control Tips for Driving on Dusty Roads

When driving your 2025 Toyota bZ4X on dusty roads, it is best to close all the windows to prevent dust from entering the cabin. If you find that dust is still being drawn into the vehicle after closing the windows (likely through the ventilation system), it is recommended to set the air intake mode to outside air and turn the fan on to any speed setting except "off". This positive pressure can help prevent dust from being pulled into the interior.

Understanding Outside and Recirculated Air Modes

• Setting the climate control system to the recirculated air mode temporarily can be beneficial for preventing polluted or unpleasant outside air from entering the vehicle's interior. It is also more efficient for quickly cooling down the cabin when the outside air temperature is very high, as the system is only cooling the air already inside.
• The system in your 2025 Toyota bZ4X might automatically switch between the outside and recirculated air modes depending on the currently set temperature or the actual temperature inside the vehicle to optimize comfort and efficiency.

Automatic Recirculation in Hot Weather

• When the outside air temperature exceeds approximately 75ºF (24ºC) and the air conditioning system is turned on in your 2025 Toyota bZ4X, the system might automatically switch to the recirculated air mode. This is done to reduce the power consumption of the air conditioning compressor and improve its efficiency in cooling the cabin, which can also help to conserve electricity and extend the vehicle's range.
• Recirculated air mode is often selected as the default setting when you turn the power switch of your vehicle to the 'ON' position to help quickly regulate the cabin temperature.
• You can manually override this automatic selection and switch to the outside air mode at any time by simply pressing the outside/recirculated air mode switch on the climate control panel.

Dehumidification Function in Very Cold Temperatures

When the outside air temperature falls to near 32ºF (0ºC) or below, the dehumidification function of the air conditioning system in your 2025 Toyota bZ4X might not operate effectively, even if you press the "A/C" switch. This is because the air at such low temperatures already holds very little moisture.

Operation of the Air Conditioning System in Eco Air Conditioning Mode

• When the eco air conditioning mode is active in your 2025 Toyota bZ4X, the air conditioning system is managed with a focus on maximizing power consumption efficiency. This involves the following adjustments:

• The EV system and the air conditioning compressor operation are controlled to potentially restrict the maximum heating and cooling capacity of the system to conserve energy.
• The fan speed might be automatically restricted when the automatic mode of the climate control is selected to reduce power draw.

• You can toggle the eco air conditioning mode on or off by using the dedicated air conditioning control switch (usually the "ECO" button) on the climate control panel.
• If you need to improve the air conditioning performance, especially for faster cooling or heating, you can try the following:

• Manually adjust the fan speed to a higher setting if it is being limited by the eco mode.
• Turn off the eco air conditioning mode altogether to allow the system to operate at its full heating or cooling capacity.

Managing Ventilation and Air Conditioning Odors

• To introduce fresh air into the cabin of your 2025 Toyota bZ4X and help prevent the build-up of odors, make sure to set the air conditioning system to the outside air intake mode.
• Over time and through regular use, various odors from both inside and outside the vehicle can potentially enter and accumulate within the air conditioning system's ductwork and components. This might eventually lead to an unpleasant odor being emitted from the vents when the system is running.
• To help reduce the potential for odors to occur within the air conditioning system:

• It is generally recommended to set the air conditioning system to the outside air intake mode for a short period prior to turning off your vehicle. This can help to ventilate the system and reduce trapped moisture and odors.
• You might notice a slight delay in the blower fan starting up immediately after you start your vehicle and the air conditioning system engages in automatic mode. This is normal and part of the system's operation.

• When you park your 2025 Toyota bZ4X, the climate control system might automatically switch to the outside air intake mode. This is designed to encourage better air circulation throughout the vehicle while it is parked, which can help to minimize the occurrence of odors when you next start the vehicle.

Air conditioning filter

Air conditioning system refrigerant

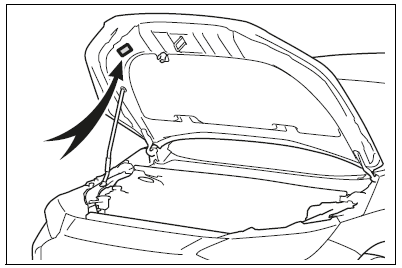

• A label regarding the refrigerant of the air conditioning system is attached to the hood at the location shown in the following illustration.

• The meaning of each symbol on the label are as follows:

Caution

Air conditioning system

Air conditioning system lubricant type

Requires registered technician to service air conditioning system

Flammable refrigerant

Normal Operation Noise from the Air Conditioning System

You might hear a sound originating from the air conditioning system in your 2025 Toyota bZ4X approximately 90 seconds after the power switch is turned to the OFF position. This is a normal sound associated with the air conditioning system initializing or performing a self-check and does not indicate any malfunction or issue.

Customization Options for Climate Control

Please be aware that certain functions and settings of the air conditioning system in your 2025 Toyota bZ4X can be customized to your preferences. Refer to the vehicle's settings menu on the multimedia display for available personalization options.

WARNING - Important Safety Precautions Regarding the Climate Control System

To Prevent Windshield Fogging:

Avoid using the windshield defogger switch during cool air operation when the weather is extremely humid. The significant difference between the outside air temperature and the temperature of the windshield's surface can sometimes cause the outer surface of the windshield to fog up, potentially obstructing your vision.

To Prevent Burns:

• Do not touch the surfaces of the outside rearview mirrors when the mirror defoggers are turned on, as they can become hot.
• In vehicles equipped with a windshield wiper de-icer system, do not touch the glass in the lower portion of the windshield or to the side of the front pillars when the wiper de-icer is active, as these areas will heat up to melt ice.

NOTICE - Important Information About the Climate Control System

To Prevent 12-Volt Battery Discharge:

To conserve battery power and prevent the 12-volt battery in your 2025 Toyota bZ4X from becoming depleted, avoid leaving the air conditioning system running for longer than necessary when the main EV system is turned off.

Repairing or Replacing Air Conditioning System Components:

For any repairs or replacements needed for the air conditioning system in your Toyota bZ4X, it is recommended to have the work performed by an authorized Toyota dealer. This ensures that qualified technicians handle the system and that genuine, new parts are used when replacements are necessary, such as with the evaporator.

Using the Automatic Climate Control Mode

1. To activate the automatic climate control system in your 2025 Toyota bZ4X, press the "ALL AUTO (ECO)" switch located on the climate control panel.

Once activated, the dehumidification function will begin to operate automatically. The system will also intelligently adjust the airflow from the air outlets and the fan speed based on the temperature you have set and the current humidity levels inside the cabin.

2. Adjust the desired temperature setting using the temperature control switch. The automatic system will then work to achieve and maintain this temperature.
3. To completely stop the automatic climate control operation, press the "OFF" switch on the climate control panel.

If you manually adjust the fan speed setting or the airflow mode using their respective controls while the automatic mode is engaged, the indicator light for the automatic mode might turn off. However, the automatic regulation of other functions within the climate control system will continue to operate as programmed.

Automatic Fan Speed Adjustment

When the automatic mode of the climate control system is active in your 2025 Toyota bZ4X, the fan speed will be adjusted automatically by the system. It takes into account the temperature setting you have selected and the ambient conditions both inside and outside the vehicle to optimize heating or cooling.

You might notice that the fan may pause or stop for a short period immediately after you press the automatic mode switch. This is normal behavior as the system waits until the air being delivered is at the desired temperature before initiating airflow into the cabin.

Adjusting Temperature Separately for Driver and Front Passenger ("SYNC" Mode)

The climate control system in your 2025 Toyota bZ4X allows for independent temperature adjustments for the driver and the front passenger. To enable or disable the "SYNC" mode, which synchronizes these temperatures, you can perform either of the following actions:

• Press the "SYNC" mode switch, usually located on the climate control panel.
• Alternatively, you can adjust the temperature setting specifically on the front passenger's side of the vehicle. This action will typically override the "SYNC" mode and allow for separate temperature control.

When the "SYNC" mode is active, an indicator light will typically illuminate, confirming that both sides are set to the same temperature.

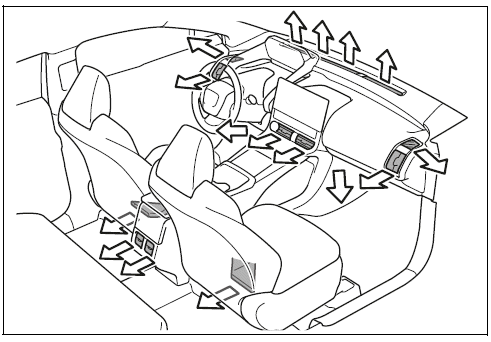

Location of air outlets

The air outlets and air volume change according to the selected air flow mode.

Adjusting the air flow direction and opening/closing the air outlets

Front

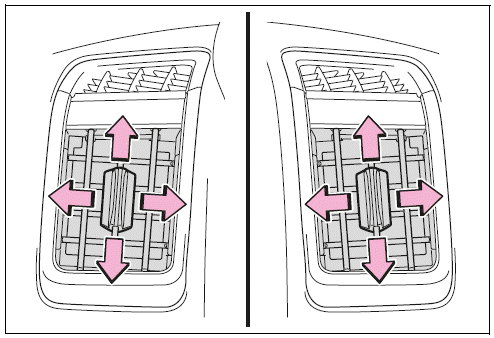

Direct air flow to the left or right, up or down Move the knob fully to the outside to close the vent.

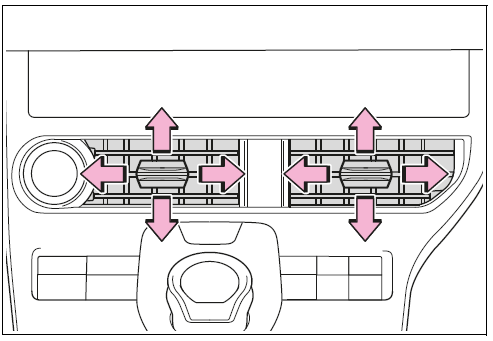

Direct air flow to the left or right, up or down

Move the knob fully downward to close the vent.

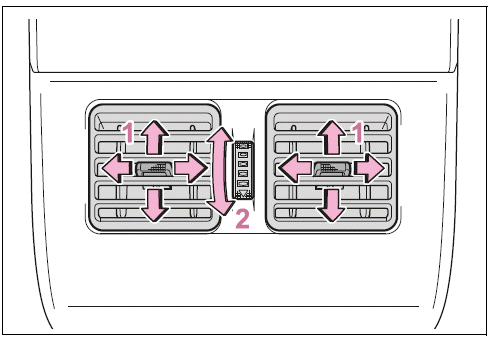

Rear

1. Direct air flow to the left or right, up or down
2. Turn the knob to open or close the vent

WARNING

To not interrupt the windshield defogger from operating

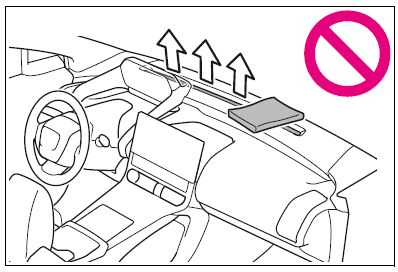

Do not place anything on the instrument panel which may cover the air outlets. Otherwise, air flow may be obstructed, preventing the windshield defoggers from defogging.

Front seat concentrated airflow mode (S-FLOW)

This function automatically controls the air conditioning airflow so that priority is given to the front seats. Unnecessary air conditioning is suppressed, contributing to increased electricity consumption efficiency.

Front seat concentrated airflow mode operates in the following situations.

• No passengers are detected in the rear seats
• The windshield defogger is not operating

While operating,  illuminates.

Manually turning front seat concentrated airflow mode on/off

In front seat concentrated airflow mode, directing airflow to the front seats only and to all seats can be switched via switch operation. When the mode has been switched manually, automatic airflow control stops operating.

Press on the air conditioning operation panel and switch the airflow.

• Indicator illuminated: Airflow to the front seats only
• Indicator off: Airflow to all the seats

Operation of automatic airflow control

• In order to maintain a comfortable interior, airflow may be directed to seats without passengers immediately after the EV system is started and at other times depending on the outside temperature.
• After the EV system is started, if passengers move around inside or enter/exit the vehicle, the system cannot accurately detect the presence of passengers and automatic airflow control will not operate.

Operation of manual airflow control

Even if the function is manually switched to directing airflow to only the front seats, when a rear seat is occupied, it may automatically direct airflow to all seats.

To return to automatic airflow control

1. With the indicator off, turn the power switch off.
2. After 60 minutes or more elapse, turn the power switch to ON.
