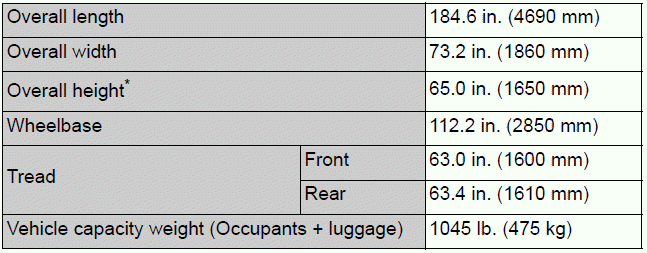

Dimensions and weights
*: Unladen vehicle
Seating capacity
Seating capacity 5 - (Front 2, Rear 3)
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.

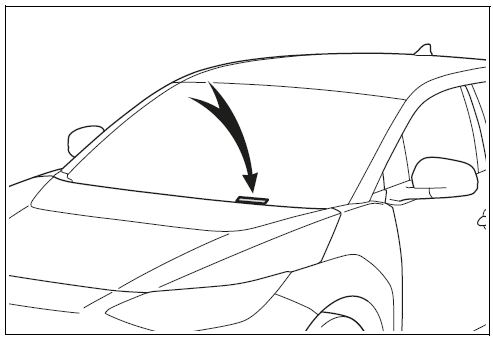

This number is on the top left of the instrument panel.

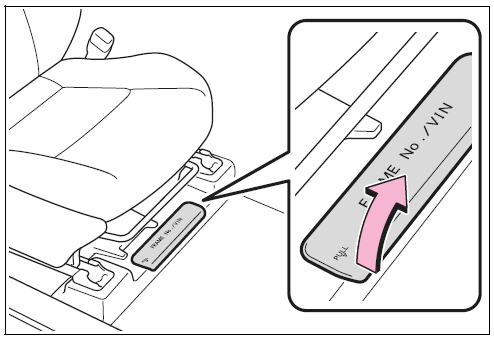

This number is also stamped under the right-hand front seat.

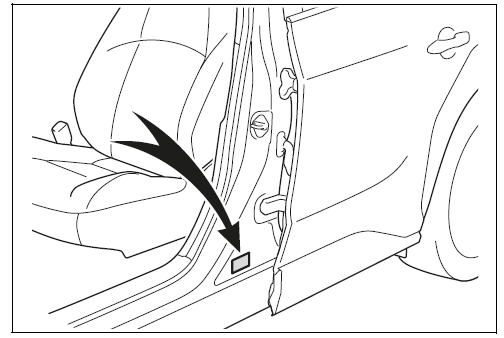

This number is also on the Certification Regulation Label.

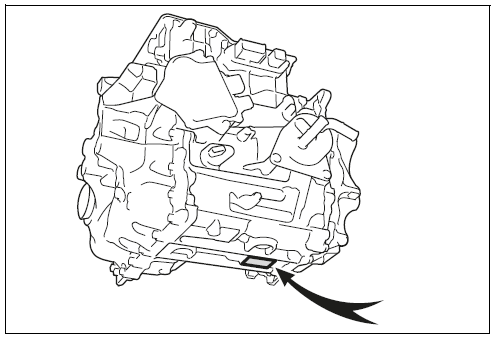

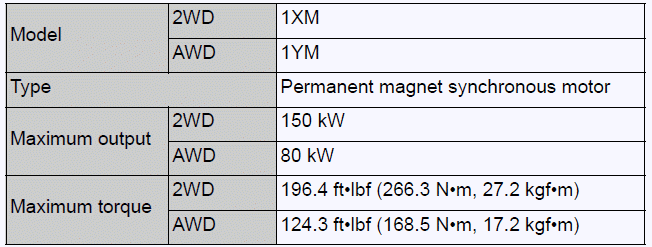

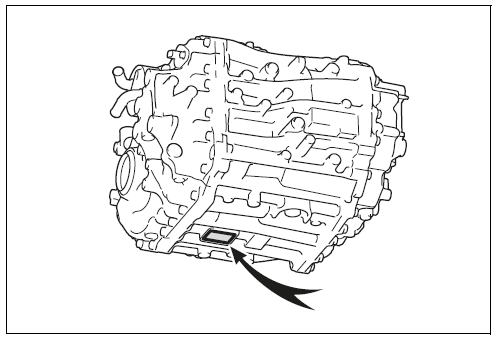

Motor model type and motor number

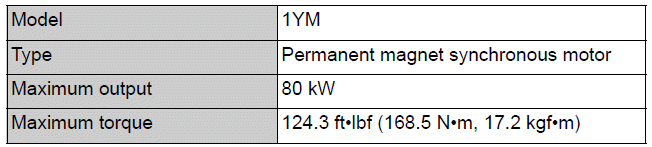

Front electric motor (traction motor)
Rear electric motor (traction motor) (AWD models)

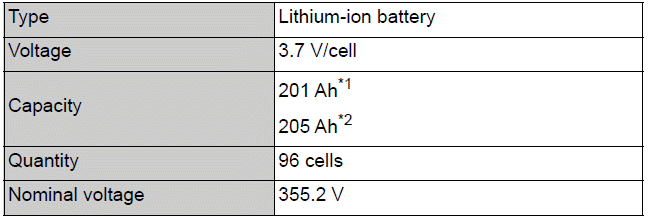

Traction battery
*1:2WD models
*2:AWD models

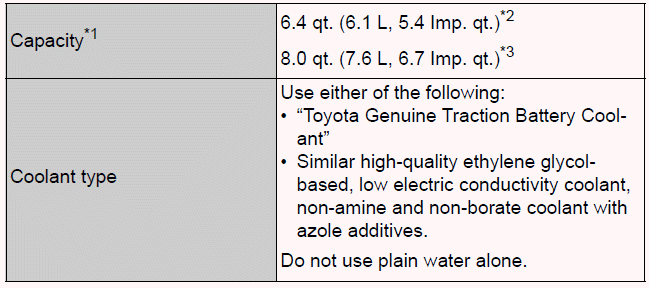

Cooling system
*1:The coolant capacity is the quantity of reference. If replacement is necessary, contact your Toyota dealer.
*2:2WD models
*3:AWD models
NOTICE
Cooling system coolant
In order to ensure maximum performance of the traction battery cooling system and limit risks of battery short circuit and other damage to your vehicle, Toyota recommends using "Toyota Genuine Traction Battery Coolant" or similar high-quality ethylene glycol-based, low electric conductivity coolant, non-amine and non-borate coolant with azole additives.
Toyota cannot guarantee that the use of a product other than "Toyota Genuine Traction Battery Coolant" will prevent risks of battery short circuit or other damage.
Never use water as it will cause damage.

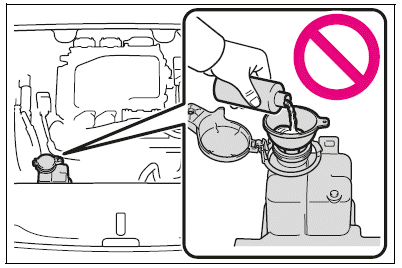

Do not reuse coolant that has been removed from the radiator.

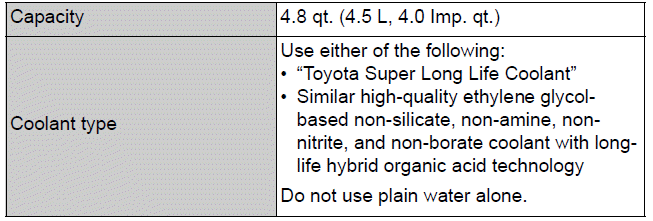

Heater system

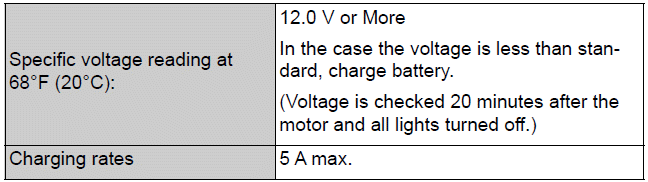

Electrical system (12-volt battery)
Front eAxle
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Toyota dealer.
NOTICE
Front eAxle fluid type
Using transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the front eAxle of your vehicle.
Rear eAxle (AWD models)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Toyota dealer.
NOTICE
Rear eAxle fluid type
Using transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the rear eAxle of your vehicle.

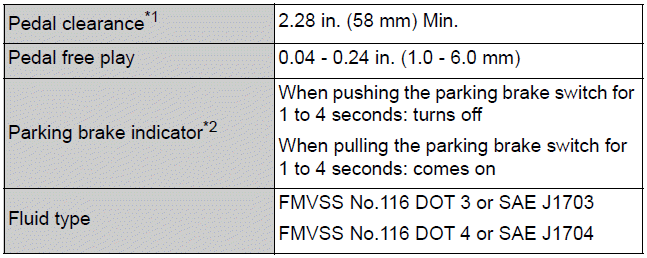

Brakes
*1:Minimum pedal clearance when depressed with a force of 66 lbf (300 N, 31 kgf) while the EV system is operating.
*2:Make sure to confirm that the brake system warning light (yellow) does not illuminate.
Steering

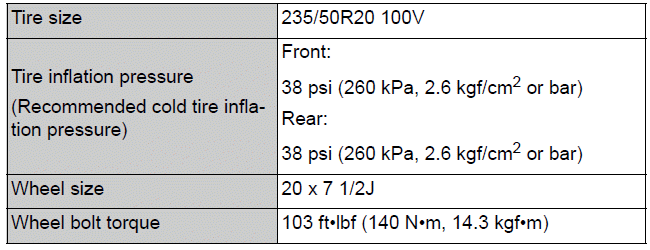

Tires and wheels
