Toyota bZ4X Owner's Manual: Luggage compartment features

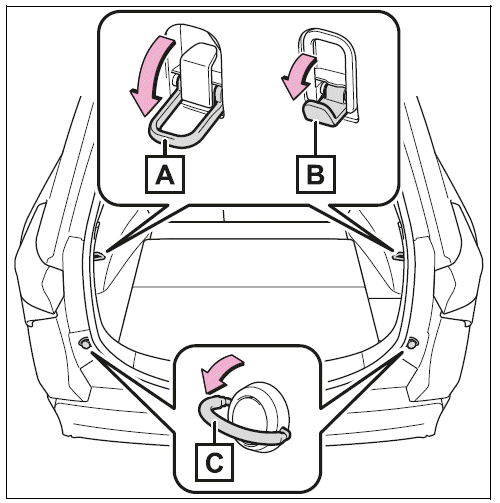

Cargo hooks

Raise the hooks to use.

The cargo hooks are provided for securing loose items.

1. Upper hook (rope hook)
2. Upper hook (utility hook)
3. Lower hook

WARNING

When cargo hooks are not in use

To avoid injury, always return the hooks to their stowed positions when not in use.

NOTICE

To prevent damage to the upper hook (utility hook)

Do not hang any object heavier than 8 lb. (4 kg) on the upper hook (utility hook).

Deck board

Changing the deck board positions

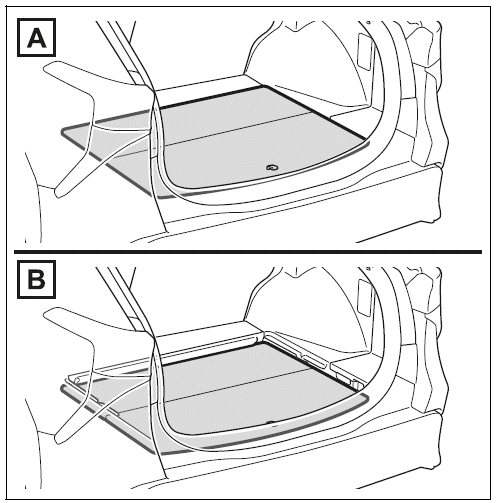

Height of the deck floor can be changed by setting the deck board under the floor.

1. Upper
2. Lower

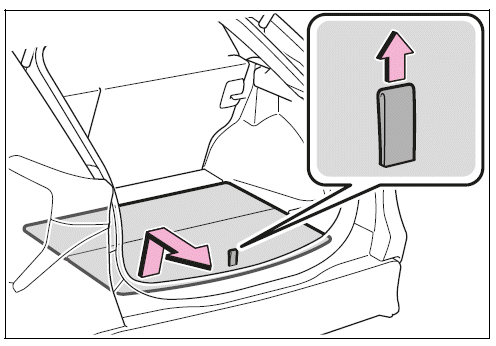

1. Pull up the tab to raise the deck board and move it toward you to remove.

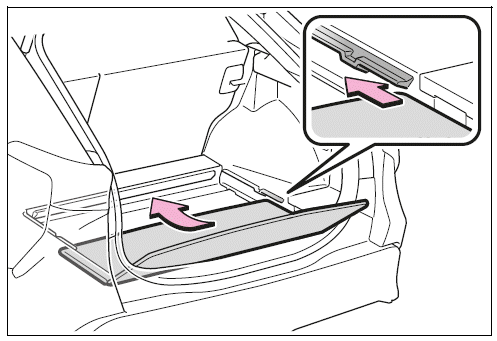

2. Place the deck board through the groove and move forward.

Setting the deck board upright

When taking out the tools, the deck board can be set upright.

When the back surface (resin surface) of the deck board is facing up, flip it back to the original position.

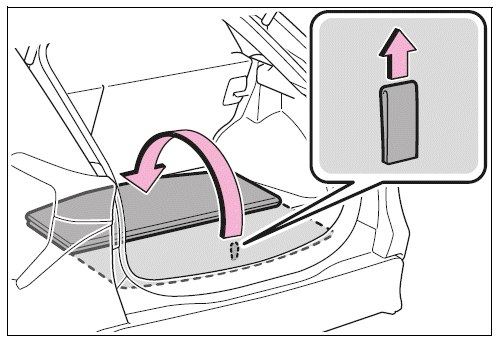

1. Pull up the tab to raise the deck board and fold it forward.

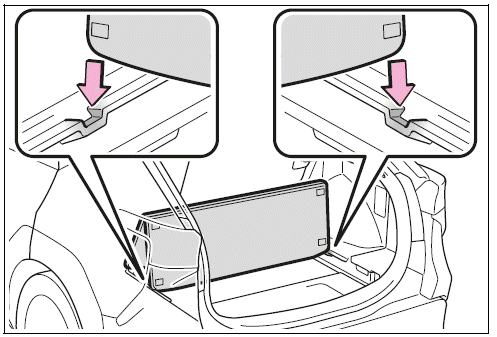

2. Deck board in a standing state, put the edge into the holes.

WARNING

When operating the deck board

Do not place anything on the deck board when operating the board.

Otherwise, your fingers may be caught or an accident may result causing injuries.

Caution while driving

Keep the deck board closed.

In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored under the deck board.

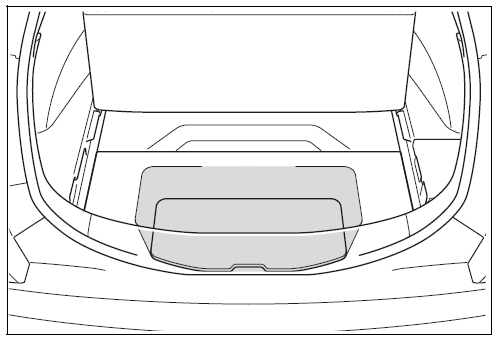

Deck under tray

Pull up the tab to raise the deck board and fold it forward.

WARNING

Caution while driving

Keep the deck board closed.

In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored under the deck board.

Warning reflector

Depending on the size and shape of the warning reflector case, you may not be able to store it.

Luggage cover (if equipped)

Removing the luggage cover unit

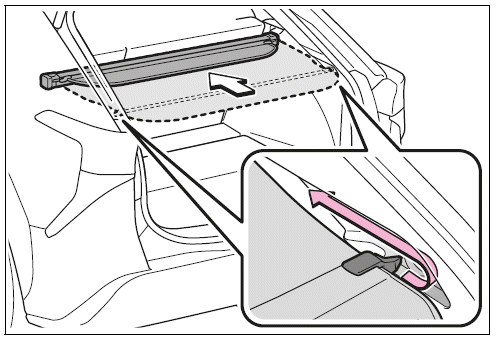

1. Pull up the tab to raise the deck board and fold it forward.

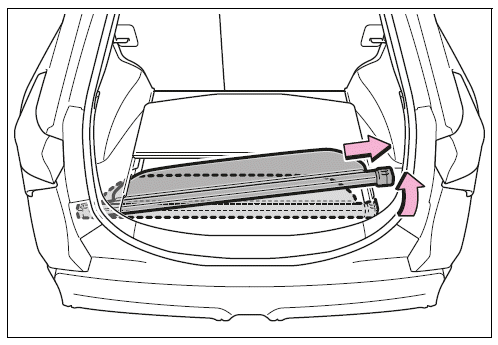

2. Take out the luggage cover unit.

Installing the luggage cover

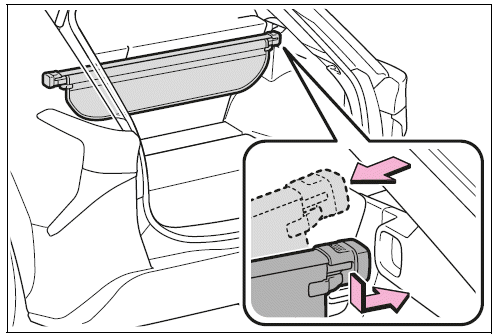

1. Compress the both ends of the luggage cover and insert into the recess to install.

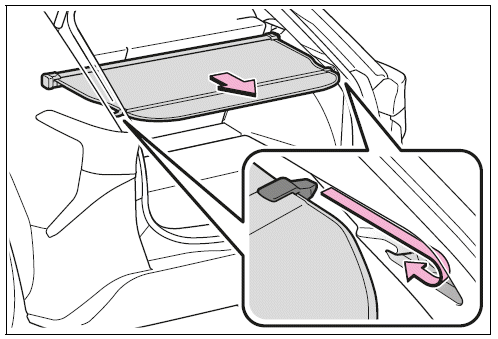

2. Pull out the luggage cover and hook it onto the anchors.

Removing the luggage cover

1. Release the cover from the left and right anchors and allow it to retract

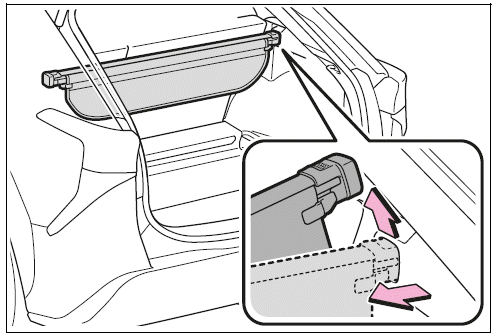

2. Compress the end of the luggage cover and lift the luggage cover up.

Stowing the luggage cover unit

1. Pull up the tab to raise the deck board and fold it forward.

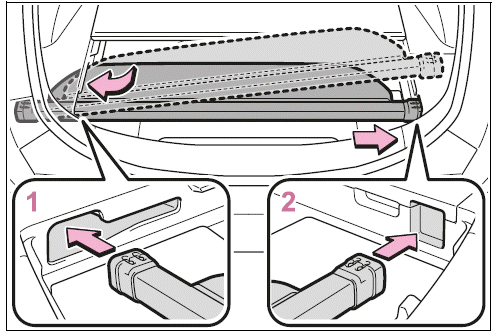

2. To store the luggage cover unit, compress both ends until they lock

1. Insert the left end of the luggage cover unit into the groove on the left side of the deck.
2. Insert the right end of the luggage cover unit into the groove on the right side of the deck side.
