Toyota bZ4X Owner's Manual: Front Passenger Occupant Classification System

The Toyota bZ4X is equipped with an advanced front passenger occupant classification system designed to enhance safety by determining seat conditions and adjusting airbag deployment accordingly. This intelligent system ensures that airbags are activated only when necessary, optimizing protection while minimizing unnecessary deployment risks.

SRS Airbags Managed by This System:

• SRS front passenger airbag – Provides primary protection during frontal collisions.
• SRS front passenger knee airbag – Helps stabilize lower body movement and reduces potential leg injuries.

How the Occupant Classification System Works:

• The system detects the presence, weight, and seating posture of the front passenger.
• It determines whether the airbag should be activated or deactivated based on passenger positioning.
• In cases where a child or lightweight object is placed on the front seat, the airbag system may automatically deactivate to prevent unintended deployment.

This feature enhances the Toyota bZ4X’s comprehensive safety approach by adapting airbag responses to real-world conditions, ensuring occupants receive the right level of protection. Regular system checks at your Toyota dealership can help maintain its reliability and effectiveness.

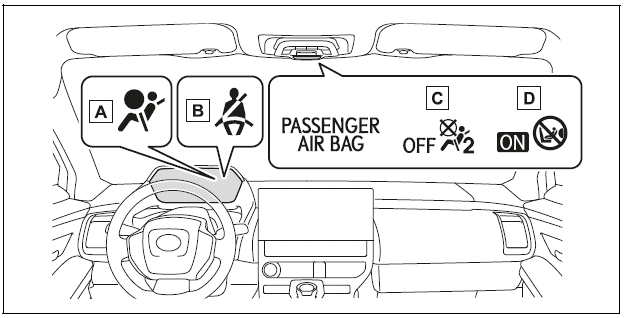

System components

1. SRS warning light
2. Front passenger's seat belt reminder light
3. "AIR BAG OFF" indicator light
4. "AIR BAG ON" indicator light

Front passenger occupant classification system conditions and operation

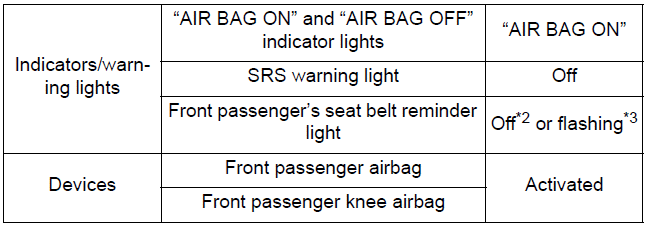

Adult*1

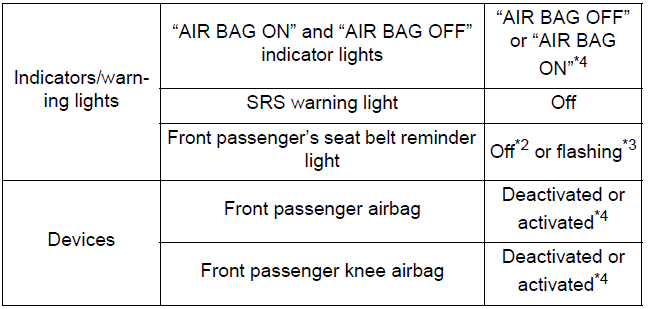

Child*4

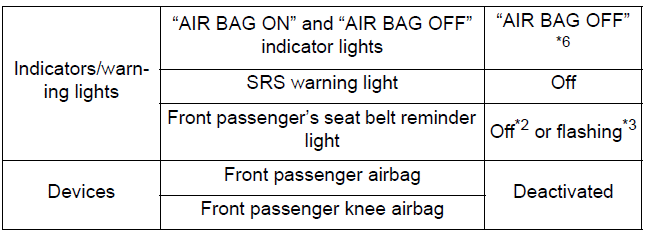

Child restraint system with infant*5

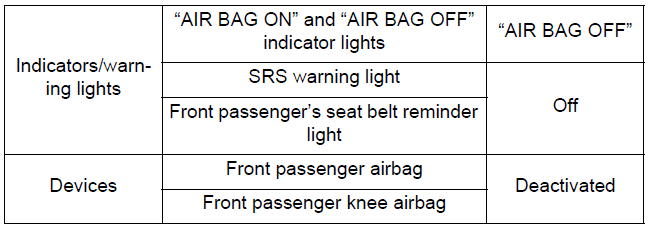

Unoccupied

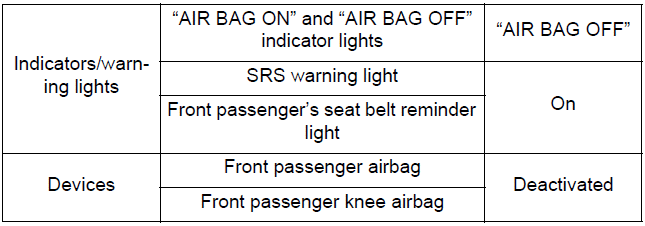

System malfunction

Understanding the Front Passenger Occupant Classification System in the Toyota bZ4X

The occupant classification system in the Toyota bZ4X determines whether the front passenger airbag should be activated based on weight, seating posture, and seat belt usage. Proper awareness of how the system functions ensures optimal safety for all passengers.

Key Considerations:

• The system classifies individuals of adult size as adults. However, smaller adults may not be recognized as such depending on their physique and seating posture.
• The front passenger airbag system behavior varies depending on seat belt usage:
  • When the front passenger is wearing a seat belt, the system responds accordingly.
  • If the front passenger is not wearing a seat belt, airbag deployment may be adjusted based on other factors.
• Children secured in a car seat, booster seat, or convertible seat may not always be recognized correctly by the system. Their physique and seating posture can impact classification.
• Rear-facing child restraint systems should never be installed in the front passenger seat. A forward-facing child restraint system should only be used in the front seat when absolutely necessary.
• If the indicator light does not illuminate, refer to the Toyota bZ4X manual for proper child restraint system installation procedures.

Toyota’s advanced occupant classification system is designed to optimize airbag activation based on real-time passenger conditions. Regular safety checks and proper seating arrangements ensure that the airbag system functions correctly, enhancing overall passenger protection.

WARNING

Front Passenger Occupant Classification System Precautions

To ensure the safety and effectiveness of the front passenger occupant classification system in your Toyota bZ4X, follow these precautions carefully. Failure to do so may result in serious injury or death.

• Always wear the seat belt properly to ensure the airbag system functions as intended.
• Before someone sits in the front passenger seat, check that the seat belt plate is not already inserted into the buckle.
• Verify that the "AIR BAG OFF" indicator light is not illuminated when using a seat belt extender. If the light is on, disconnect the extender from the buckle and reattach the seat belt properly before reconnecting the extender.
• Do not apply excessive weight or pressure to the front passenger seat or seatback pocket, as this may interfere with proper airbag system operation.
• Avoid placing hands, feet, or any objects on the front passenger seatback from the rear seat, as this may alter the occupant classification.
• Rear passengers should never lift the front passenger seat or press against the seatback with their legs.
• Do not store objects under the front passenger seat, as they may interfere with airbag deployment.
• Do not recline the front passenger seatback excessively. If it touches the rear seat, reposition it to ensure proper airbag activation.
• For adult passengers, ensure the "AIR BAG ON" indicator light is illuminated. If the "AIR BAG OFF" light remains on, adjust the seating posture or move the passenger seat fully rearward.
• Only install a forward-facing child restraint system in the front passenger seat if it is absolutely necessary, and follow the correct installation procedure.
• Avoid modifying or removing the front seats, as alterations can compromise airbag system functionality.

Additional Precautions

• Do not kick or apply strong impact to the front passenger seat. A malfunction of the occupant classification system may trigger the SRS warning light. If this occurs, contact your Toyota dealer immediately.
• Ensure child restraint systems installed in the rear seat do not press against the front seatbacks.
• Do not use seat accessories such as cushions or covers that obstruct the seat cushion surface, as they can interfere with airbag deployment.
• Never modify or replace the upholstery of the front seat, as changes may affect the airbag system's effectiveness.

By following these precautions, you can help ensure that the advanced airbag system in your Toyota bZ4X functions correctly, providing the highest level of protection in critical situations.
