Toyota bZ4X Owner's Manual: Brake Hold

The brake hold system is designed to keep the brakes applied when your vehicle is stopped in either Drive (D) or Neutral (N) mode. Once the brake pedal has been depressed to bring the vehicle to a standstill, the system maintains the braking force so that you do not have to keep your foot on the brake continuously. When you depress the accelerator pedal while in Drive, the system automatically releases the brakes, ensuring a smooth and controlled start.

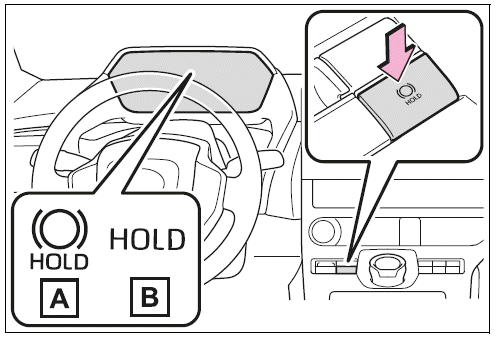

To activate the brake hold function, engage the designated parking brake switch while the vehicle is stationary. You will observe the brake hold standby indicator (green, marked as A) illuminate on the multi-information display. Once the system actively holds the brakes, a second indicator (yellow, marked as B) will light up-providing clear visual confirmation that the brake hold is in operation.

The brake hold system not only reduces driver fatigue by eliminating the need for continuous brake pedal pressure in stop-and-go traffic, but it also contributes to safer driving by preventing unintended vehicle movement. This is particularly beneficial in urban environments or on inclined surfaces, where maintaining complete stationarity is critical. By easing the transition from a full stop to a gentle start, the system helps in avoiding abrupt moves that could otherwise compromise control.

Modern engineering integrates brake hold functionality with other vehicle systems to optimize performance and energy efficiency. For example, when combined with features such as regenerative braking, the system supports smoother deceleration and improved battery recovery in hybrid drivetrains. Regularly verifying that the indicator lights are functioning correctly will help ensure that the brake hold system continues to provide reliable service. Advanced models, like one standout Toyota, showcase how these innovations help enhance overall safety while offering drivers a more comfortable and intuitive experience.

The brake hold system is designed to keep the brakes engaged when the vehicle is stationary. However, the system cannot be activated if any of the following conditions exist:

• The driver's door is not closed.
• The driver is not wearing a seat belt.
• A message such as "Parking Brake Unavailable" or "Parking Brake Malfunction – Visit Your Dealer" appears on the multi-information display.

If one or more of these conditions are detected at the time of activation, the brake hold system will automatically turn off and the standby indicator light will go off. Moreover, if these issues are detected while the system is actively holding the brakes, a warning buzzer will sound and an alert message will be shown on the display, prompting the system to automatically set the parking brake.

Once activated under proper conditions, the brake hold function continuously monitors the vehicle’s status. For example:

• If the brake pedal is left released for about 3 minutes after the system has engaged, the parking brake will be set automatically, accompanied by a warning buzzer and an on-screen message.
• The brake hold function may not be able to hold the vehicle securely on a steep incline. In such situations, additional manual braking might be necessary. A warning buzzer and display message will advise you to apply the brakes.
• To manually turn off the brake hold system while it is engaged, firmly depress the brake pedal and press the brake hold button again.

In the event that the parking brake is automatically engaged while the system is active, you can release it by performing one of the following actions:

• Depress the accelerator pedal. (Note: The parking brake will not release automatically if the seat belt is not fastened.)
• Operate the parking brake switch with the brake pedal still depressed.

Always verify that the parking brake indicator light turns off to confirm that the brake has been released.

If the brake hold standby indicator (usually green) fails to illuminate when the switch is pressed under valid operating conditions, the system may be malfunctioning. In such cases, have your vehicle inspected by an authorized dealer.

Similarly, if you see messages like "Brake Hold Malfunction – Press Brake to Deactivate, Visit Your Dealer" or "Brake Hold Malfunction – Visit Your Dealer" on the multi-information display, this indicates a potential fault that requires immediate professional assessment.

The brake hold system utilizes warning messages and buzzers to inform the driver of malfunctions or cautionary conditions. For instance, if the brake hold operated indicator flashes, the system uses audible alerts to signal issues:

• WARNING: When the vehicle is on a steep incline, the brake hold function may not be sufficient-exercise extra caution.
• WARNING: On a slippery road, if the tires cannot maintain grip, the system may be ineffective. Do not rely solely on brake hold in such conditions.

It is important to note that the brake hold system is not designed for extended parking. Before leaving your vehicle, ensure that you shift into Park (P), manually set the parking brake, and confirm that the vehicle remains completely stationary. Turning the power switch off while the brake hold system is active may cause the brakes to release, potentially allowing the vehicle to move unexpectedly.

For optimal performance and safety:

• Always ensure that all required conditions-closed doors, fastened seat belts, and correct system messages-are met before engaging the brake hold function.
• Regularly verify that indicator lights and audible alerts are functioning correctly during routine vehicle maintenance.
• If any irregularities occur, such as the standby indicator not lighting up despite correct conditions, schedule an inspection immediately.

Advanced brake hold systems not only enhance driving comfort by reducing the need to keep constant pressure on the brake pedal but also provide an extra layer of safety by automatically securing the vehicle when necessary. For instance, one prominent Toyota model incorporates these sophisticated features to help drivers maintain control and energy efficiency under a variety of driving conditions.

By following these guidelines, you can ensure that your brake hold system operates as intended, offering a smoother and safer driving experience while also extending the longevity of critical brake components. Always refer to your owner’s manual and consult a professional if any warning messages or irregular behaviors are observed.
