Toyota bZ4X Owner's Manual: Toyota Teammate Advanced Park: Your Parking Assistance System

Function Description

Toyota Teammate Advanced Park represents a sophisticated system designed to aid drivers in safely and smoothly maneuvering their vehicle into or out of parking spaces. This technology enhances the parking experience by providing a comprehensive view of the vehicle's surroundings and the intended parking spot through a bird's eye perspective displayed on the multimedia screen. It offers operational guidance via visual cues and buzzer alerts and takes control of gear shifting, steering wheel operation, and accelerator and brake pedal input during the parking process.

Furthermore, the panoramic view monitor* provides an extended view of the areas in front, behind, and directly above your vehicle, enabling you to confirm the conditions of the entire surrounding environment before and during parking maneuvers.

The turn signal lights on your vehicle will automatically blink once the parking assistance is initiated and will continue until the vehicle is correctly positioned within the target parking space. This feature serves as a clear notification to pedestrians and other vehicles in the vicinity that an automated parking operation is in progress.

It's important to note that the effectiveness of Advanced Park can be influenced by various factors, including the condition of the road surface, the specific characteristics of your vehicle, and the distance and orientation relative to the parking space. In some instances, assisting with parking in the desired spot might not be feasible.

Always ensure that you use Toyota Teammate Advanced Park in strict accordance with all applicable local road traffic laws and regulations to maintain safety and legality.

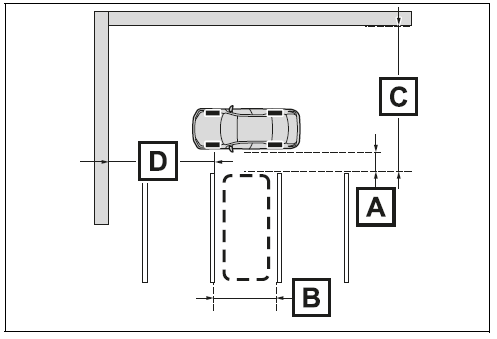

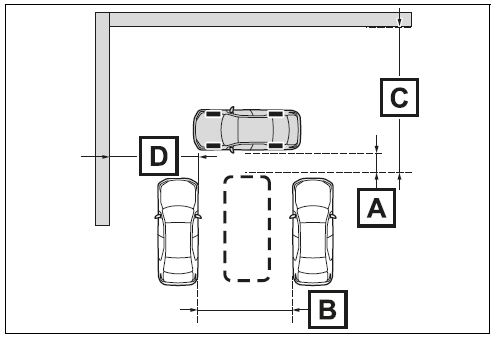

Functions of Advanced Park Perpendicular Parking (Forward and Reverse) Assistance

This function provides comprehensive assistance starting from the moment your vehicle is positioned near a designated perpendicular parking space until it is completely and accurately parked within that space, whether you are driving forward or reversing.

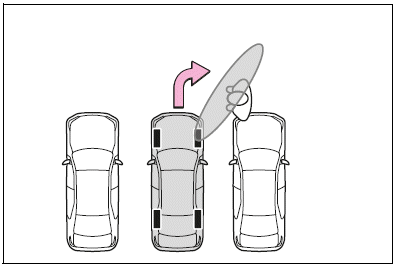

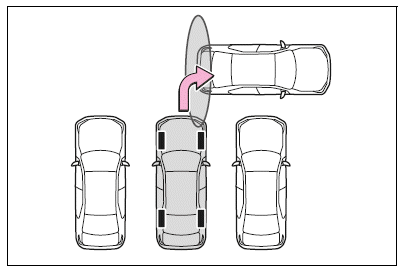

Perpendicular Exiting (Forward and Reverse) Assistance

This feature offers assistance when you are ready to depart from a perpendicular parking space. It guides your vehicle from its parked position to a point where you can easily and safely exit the parking area, regardless of whether you need to move forward or reverse to leave.

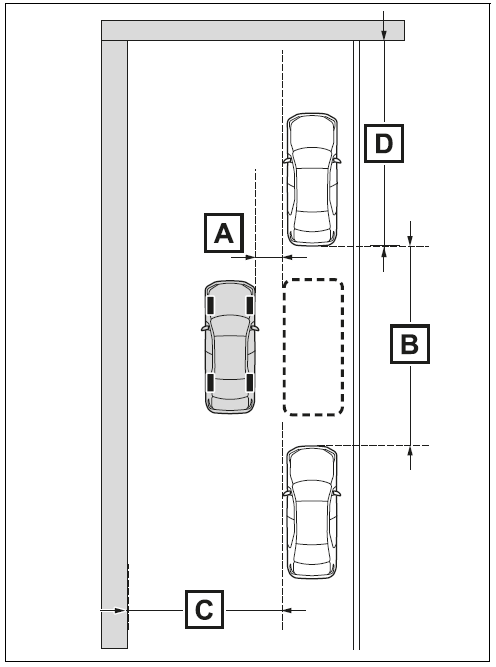

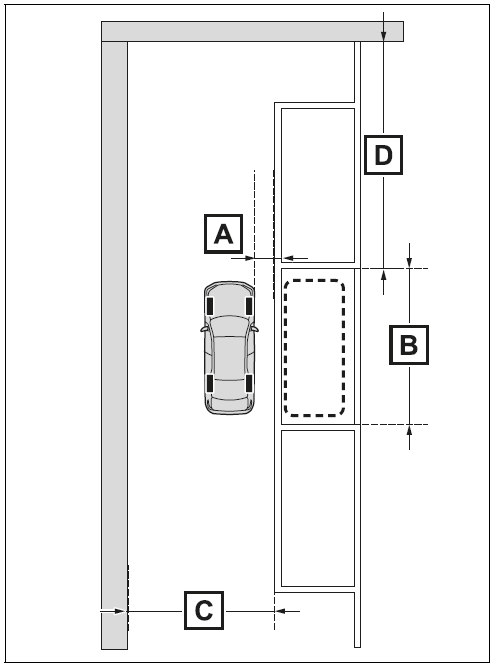

Parallel Parking Assistance

Similar to perpendicular parking, this function aids you in parallel parking. It activates from the point where your vehicle is near the intended parallel parking spot and continues until your vehicle is successfully parked within the lines.

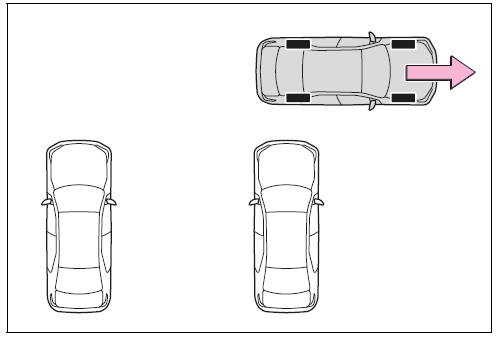

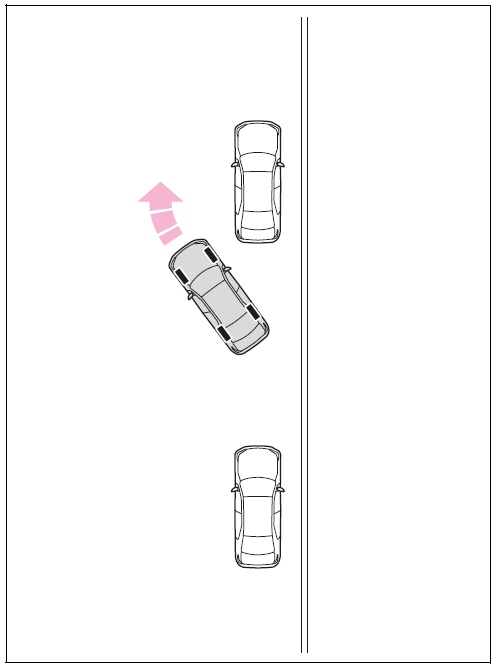

Parallel Exiting Assistance

When you need to leave a parallel parking spot, this function will guide your vehicle from its parked position to a location that provides ample space for you to easily maneuver out into traffic.

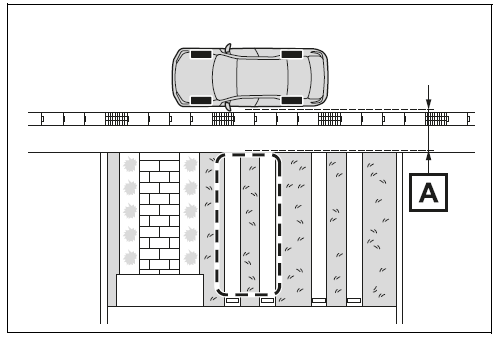

Memory Function for Parking

The Advanced Park system also includes a memory function that allows you to register specific parking spaces. Once a space is memorized, the system can provide automated assistance to guide your vehicle precisely into that pre-registered parking location whenever you choose to use it.

WARNING - Important Safety Information Regarding the Use of Advanced Park

The recognition and control capabilities of the Toyota Teammate Advanced Park system are subject to certain limitations. It is crucial to always remain attentive and responsible while using this technology.

• Just as with operating a conventional vehicle, it is essential to continuously observe your surroundings with diligence while your vehicle is in motion during an Advanced Park operation.
• Always maintain focus on the vehicle's environment while the system is active. Be prepared to manually intervene by depressing the brake pedal as needed to either slow down or bring the vehicle to a complete stop if necessary.
• Prior to initiating the Advanced Park function, carefully assess the target parking space to ensure that your vehicle can realistically be parked within its confines without any obstructions or issues.
• Depending on various factors such as the condition of the road surface, the characteristics of your vehicle, and the distance to the parking space, the Advanced Park system might not be able to accurately detect a parking space, or it may not be able to provide complete assistance all the way until your vehicle is fully parked.
• The Advanced Park system is designed to guide your vehicle to appropriate positions for making necessary turns during parking. However, if at any point you feel that the vehicle is getting too close to an adjacent parked vehicle or any other obstacle, immediately depress the brake pedal and, if needed, change the gear shift position to take manual control. Be aware that doing so might increase the number of maneuvers required and could potentially result in the vehicle being parked at a slight angle.
• Certain objects or materials might not be reliably detected by the Advanced Park system's sensors. It is imperative to always visually check the safety of the area around your vehicle and be prepared to depress the brake pedal to stop the vehicle if a potential collision with an undetected object is possible. This includes:
• Thin objects such as wires, fences, ropes, poles, or objects that appear thin from certain angles like signs and bicycles.
• Materials that have sound-absorbing properties, including cotton and snow.
• Sharp-edged objects such as the corners of block walls or columns.

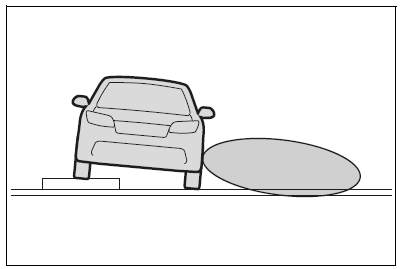

• Objects situated in lower positions, including curb stones, parking blocks, and stairs.
• Tall objects that have upper sections protruding outward, such as beams.
• Objects that are not oriented perpendicular to the ground.
• Objects that your vehicle is approaching at a diagonal angle.
• Even if an object is present within the target parking space, the Advanced Park system might not detect it and may still proceed with the parking assistance.
• If you perceive a likely risk of collision with a nearby vehicle, object, person, or of your vehicle going over the top of a parking block, immediately depress the brake pedal to stop the vehicle and then press the Advanced Park main switch to deactivate the system.
• Never rely solely on the multimedia display to view the area behind your vehicle. The image displayed might not accurately reflect the actual situation. Using only the screen when backing up using Advanced Park could lead to an accident, such as a collision with another vehicle. Always look directly or use your mirrors to check the safety of the area around your vehicle, especially behind it, when backing up.
• When the ambient temperature is extremely low, the multimedia display screen might appear darker than usual, or the displayed image could become unclear. Additionally, moving objects might appear distorted or might not be visible at all on the screen. Therefore, always directly check the safety of your vehicle's surroundings in addition to monitoring the display.
• In the following situations, while your vehicle is stopped and being held in position by the Advanced Park system, the system might unexpectedly cancel, and the vehicle could start to move. Be prepared to immediately depress the brake pedal. Failure to do so could result in an accident:
• If the driver's door is opened during the parking operation.
• If the operations instructed by the system are not performed within a certain period.
• If the brake pedal is depressed and the vehicle remains stopped for an extended duration.
• If the Advanced Park system detects a malfunction.
• As the steering wheel will automatically turn while the Advanced Park system is operating, please be mindful of the following:
• Exercise caution to ensure that clothing items like neckties and scarves, as well as your arms, do not get caught in the steering wheel. Keep your upper body at a safe distance from the steering wheel. Also, ensure that children are kept away from the steering wheel during operation.
• Long fingernails could potentially get caught while the steering wheel is rotating, which could lead to injury.
• In an emergency situation, immediately depress the brake pedal to stop the vehicle and then press the Advanced Park main switch to disable the system.
• Ensure that no one puts their hands or any other body parts outside of a window while the Advanced Park system is in operation.

To Ensure Correct Operation of Toyota Teammate Advanced Park

Please observe the following precautions to help ensure the Advanced Park system on your 2025 Toyota bZ4X operates correctly and safely. Failure to do so could result in the vehicle not being able to be driven safely and might lead to an accident.

• Do not use the Advanced Park system in the following situations:
• In areas that are not typical parking spaces.
• If the surface of the parking space is uneven, such as sand or gravel, and is not clearly marked with defined parking space lines.
• If the parking space is not level, including on slopes or surfaces with significant height differences, holes, or gutters.
• In mechanical parking systems.
• In parking lots that utilize devices that raise up to contact the bottom of the vehicle.
• If the road surface is frozen, very slick, or covered with snow or ice.
• If the ambient temperature is extremely high and the asphalt is melting or very soft.
• If there are pedestrians or other moving objects very close to the vehicle.
• If there is any object located between your vehicle and the intended parking spot or within the parking spot itself (within the displayed blue box on the screen).
• In areas with high pedestrian or vehicle traffic.
• If the parking space is in a location that is inherently difficult to park in manually (e.g., too narrow for your vehicle).
• If the images from the vehicle's cameras are unclear due to dirt, snow, or other obstructions on the lens, if bright light is shining directly into the camera, or due to shadows.
• If tire chains or a compact spare tire is currently installed on your vehicle.
• If any of the vehicle's doors or the back door/liftgate are not completely closed and latched.
• If any occupant has an arm extended outside of a window.
• During severe weather conditions such as heavy rain or snowfall.
• Always ensure that your vehicle is equipped with standard-sized tires, such as those that were originally installed at the factory. Using tires of a different size could cause the Advanced Park system to operate incorrectly. Also, if the tires have been replaced, the displayed position of the lines or box on the screen might become inaccurate. When replacing tires on your 2025 Toyota bZ4X, it is recommended to consult with your authorized Toyota dealer to ensure compatibility and proper calibration of the Advanced Park system.
• In the following situations, the Advanced Park system might not be able to provide assistance to a previously registered parking spot or might not operate correctly at all:
• If the vehicle's tires are extremely worn or if the tire inflation pressure is significantly low.
• If the vehicle is carrying a very heavy load that exceeds the recommended limits.
• If the vehicle is noticeably tilted or leaning due to the way the load is distributed.
• If a heater is installed within the surface of the parking space, such as a road surface freeze prevention heater.
• If the vehicle's wheels are misaligned, for example, after a wheel has sustained a significant impact.
• If a pedestrian or another moving vehicle is detected in close proximity to your vehicle during the parking assistance process.
• If any aftermarket device, such as a non-standard towing hook, bumper protector, bumper trim, bicycle carrier, or snow plow, is installed on the vehicle.
• If something is incorrectly identified as a parking line by the system, such as bright light reflections from a building, differences in the height of the parking surface, a gutter, painted road lines (including faded or redrawn lines), or other misleading visual cues.
• If your vehicle significantly deviates from the set parking space during an Advanced Park operation in any situation not listed above, it is advisable to have your vehicle inspected by your authorized Toyota dealer to ensure the system is functioning correctly.

NOTICE

Important Precautions for Using Advanced Park

If the 12-volt battery in your vehicle has been discharged or has been removed and then reinstalled, it is necessary to fold and then extend the outside rearview mirrors to ensure proper operation of the Advanced Park system.

Types of cameras and sensors used for the Advanced Park

Cameras and sensors are used to detect parked vehicles, making it easier to identify parking spaces.

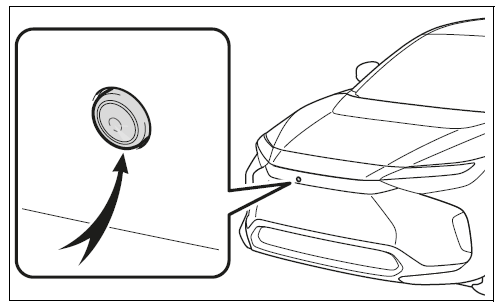

Front camera

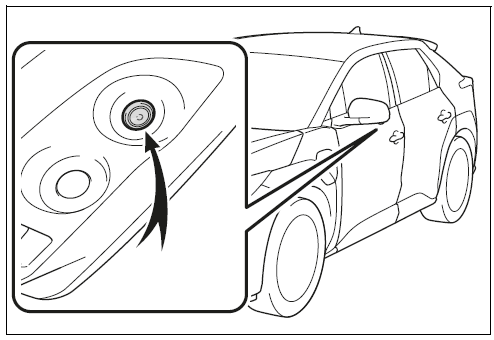

• Side cameras

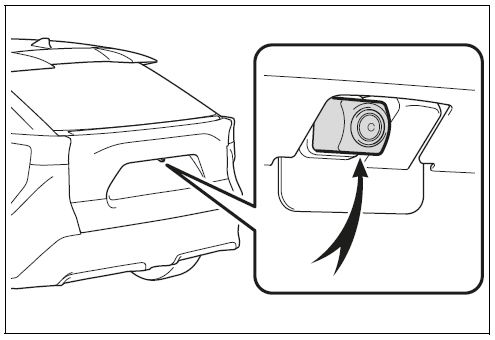

• Rear camera

• Sensors

Camera images

As special cameras are used, the colors in displayed images may differ from the actual color.

Precautions for use

• Displayable range of the screens
• Cameras
• Differences between displayed images and the actual road
• Differences between displayed images and the actual objects

Limitations of Cameras and Sensors in Toyota Teammate Advanced Park

• The detection range of the cameras and sensors might be limited when a parked vehicle is behind the target parking space, especially if the distance becomes significant. The detection of a parked vehicle can also vary depending on its shape and condition, potentially resulting in a shorter detection range or complete failure to detect the vehicle.
• The system's cameras and sensors might not detect objects other than parked vehicles, such as columns or walls. Even if these objects are detected, they could potentially cause the target parking space to be incorrectly identified or misaligned by the system.

Situations That May Hinder Proper Recognition of Parking Space Lines

• The Advanced Park system relies on clearly visible parking space lines to function correctly. Recognition of these lines might be impaired in the following situations:

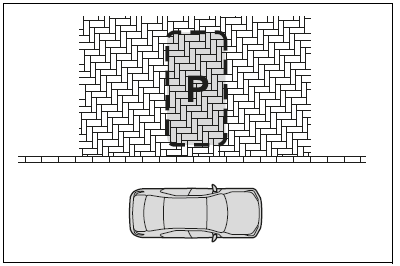

• When the parking space is not marked with painted lines but uses other boundaries like ropes or blocks.
• When the painted parking space lines on the road surface are faded, dirty, or otherwise unclear.
• When the road surface is very bright, such as concrete, leading to low contrast with white parking space lines.
• When the parking space lines are painted in colors other than the standard yellow or white.
• In dark environments, such as nighttime, underground parking lots, or parking garages, where visibility is reduced.
• During or after rain when the road surface is wet, reflective, or has puddles of water.
• When direct sunlight is shining into the vehicle's cameras, particularly during sunrise or sunset.
• When the parking space is covered with snow or a de-icing agent.
• When there are repair marks, other markings, traffic bollards, or other objects present on the road surface within or near the parking space.
• When the color or brightness of the road surface is uneven across the parking area.
• When a camera lens has been splashed with hot or cold water, causing it to fog up and obscure the view.

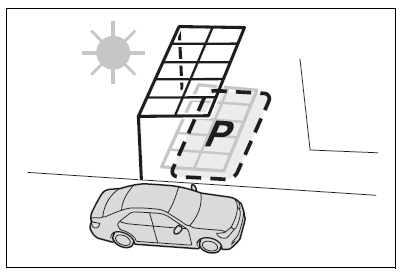

• When the appearance of the parking space is affected by shadows cast by the vehicle itself or nearby trees.
• When a camera lens is dirty or has water droplets obstructing its view.

• Additionally, the target parking space itself might not be correctly recognized in the following situations:

• When there are repair marks, other markings, parking blocks, traffic bollards, or other objects on the road surface within or near the parking space.
• During or after rain when the road surface is wet, reflective, or has puddles.
• When the area surrounding the vehicle is either very dark or strongly backlit by a light source.
• When there are inconsistencies in the color or brightness of the road surface within the parking area.
• When the parking space is located on a noticeable slope or incline.

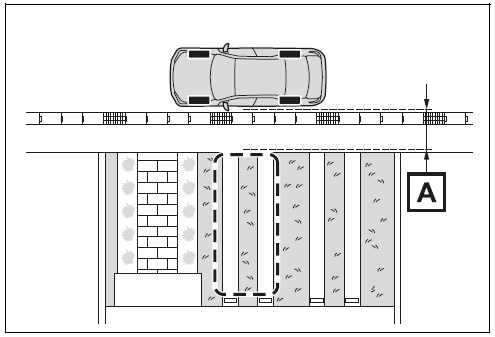

• When there are diagonal lines, such as those marking an access aisle, located near the parking space.
• When the appearance of the parking space is affected by shadows from parked vehicles, including shadows from grilles or side steps, etc.
• When accessories that obstruct the view of the vehicle's cameras have been installed.
• When the painted parking space lines are faded, dirty, or unclear.
• When the appearance of the parking space is affected by shadows from the vehicle itself or nearby trees.

Sensor Detection Information

The vehicle's sensors have certain limitations in detecting various objects.

Objects Which the Sensor May Not Properly Detect

Certain types of objects might not be reliably detected by the Advanced Park system's sensors.

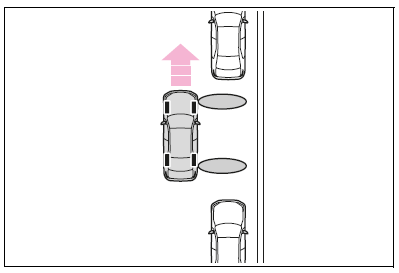

Situations in Which the Sensor May Not Operate Properly

The sensors might experience difficulties functioning correctly under specific environmental or vehicle conditions.

Situations in Which Parking Assistance May Not Operate Even Without a Collision Risk

In some instances, the parking assistance system might not engage or might disengage even if there is no apparent risk of collision.

WARNING - Important Precautions for the Cameras and Sensors

• Due to the inherent characteristics of the camera lens used in the Toyota Teammate Advanced Park system, the displayed position and distance to people and objects on the screen might differ slightly from the actual real-world situation. Always use the on-screen information as a guide and exercise caution.
• Ensure that you have reviewed and understood all the precautions for using the intuitive parking assist features of your vehicle. Failure to do so could result in the Advanced Park system's sensors not operating correctly, potentially leading to an accident.

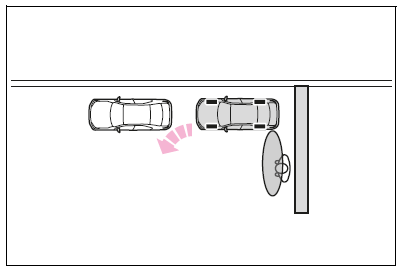

• In the following situations, the sensors might not function as expected, which could increase the risk of an accident. Please proceed with extreme caution in these circumstances:

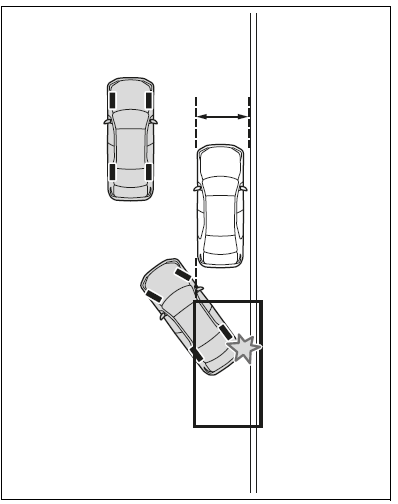

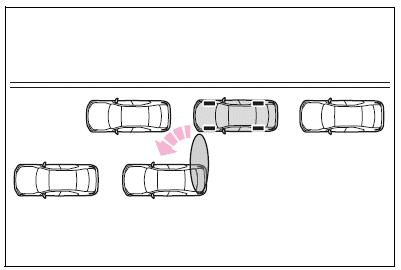

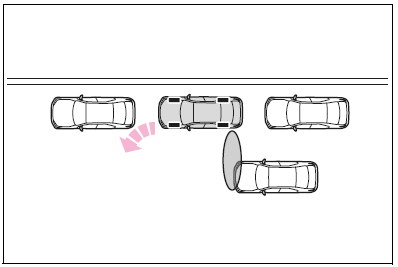

• When there is a parked vehicle located next to the intended target parking space, if the displayed target parking space appears to be significantly displaced or far from the actual target space, one or more of the vehicle's sensors might be misaligned. In such a case, it is recommended to have your vehicle inspected by an authorized Toyota dealer to ensure proper sensor alignment and functionality.
• Avoid installing any aftermarket accessories in the vicinity of the vehicle's sensor detection areas, as these could interfere with the sensors' performance and accuracy.

While Toyota Teammate Advanced Park offers significant assistance with parking, it's vital to remember that it is still a driver-assist system, and maintaining full awareness of your surroundings remains your responsibility.

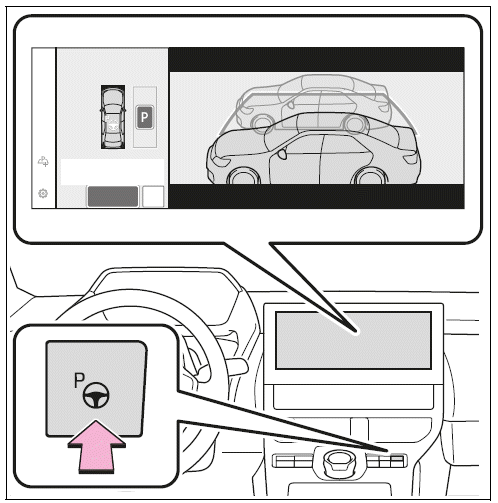

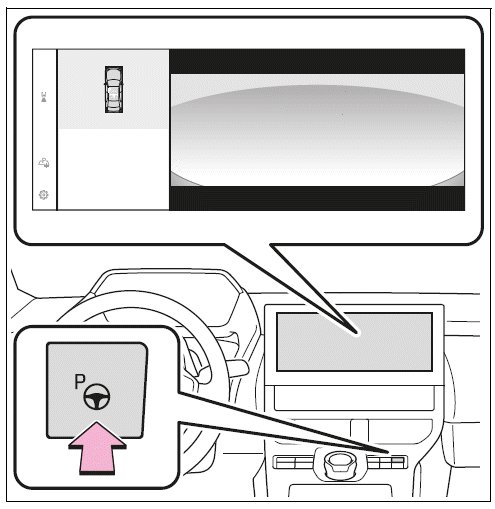

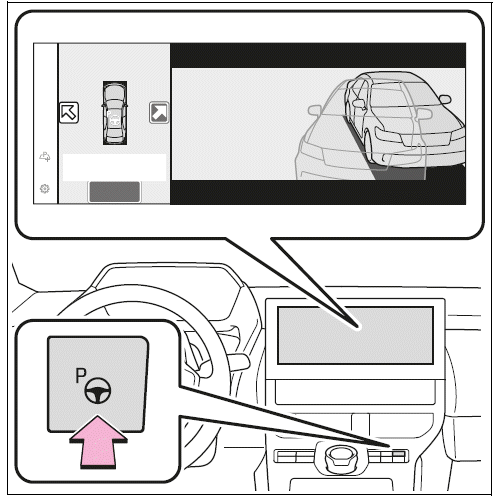

Turning the Advanced Park system on/off

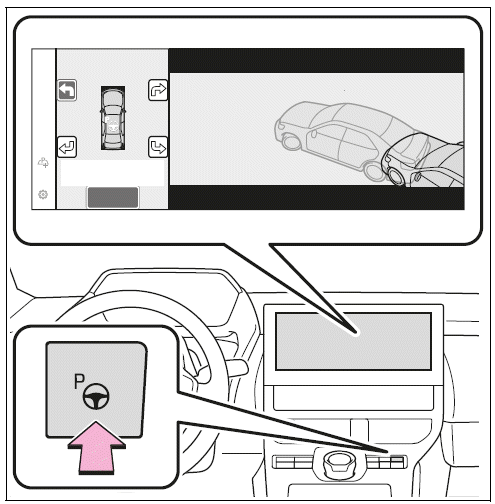

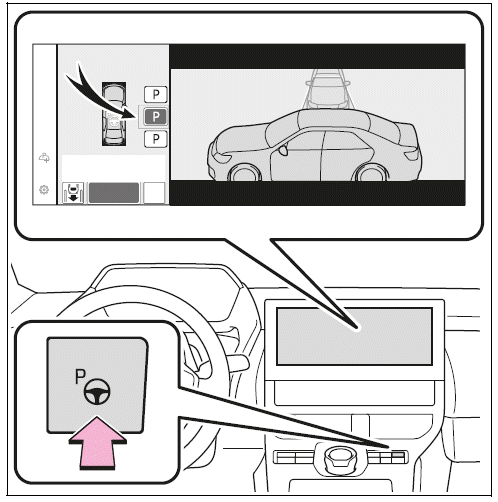

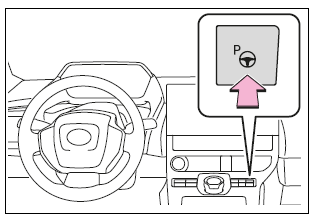

Press the Advanced Park main switch.

If the switch is pressed while assistance is being performed, the assistance will be canceled.

Operating conditions of the Advanced Park

Assistance will begin when all of the following conditions are met:

• The brake pedal is depressed
• The vehicle is stopped
• The driver's seat belt is fastened
• The steering wheel is not being operated
• The accelerator pedal is not depressed
• All of the doors and the back door are closed
• The outside rear view mirrors are not folded
• The parking brake is not engaged
• The dynamic radar cruise control are not operating
• ABS, VSC, TRAC, PCS and PKSB are not operating
• The vehicle is not on a steep slope
• The VSC and TRAC are not turned off

If assistance cannot be started, check the message displayed on the multimedia display

Advanced Park guidance screens

Guidance screens are displayed on the multimedia display.

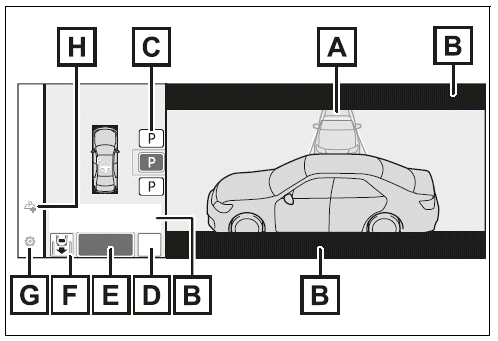

• Guidance screen (When assistance starts)

1. Target parking space box (blue)
2. Advice display
3. Parking type change button

If multiple buttons are displayed, depending on the condition of the button its function differs as follows.

or : Change the target to another parking space.

or  : Select the current target parking space.

: Select to change to the parallel parking function

: Change the perpendicular parking (forward/reverse) function

4. "MODE" button

Select to change between the memory function and the perpendicular parking (forward/reverse) function and parallel parking function.

5. "Start" button

Select to start parking assistance.

6. Perpendicular parking direction change button

Select to change between the parking (forward) function and parking (reverse) function

: Change the perpendicular parking (forward) function

: Change the perpendicular parking (reverse) function

7. Customize setting button

Select to display the Advanced Park setting screen.

8. Registration button

Select to begin registering a parking space.

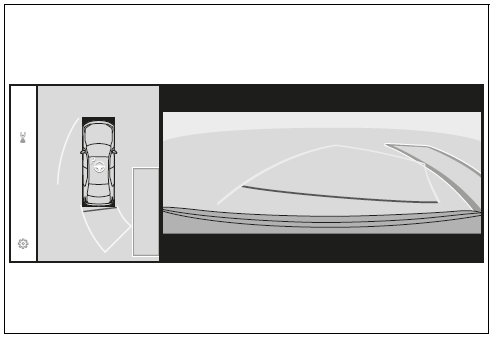

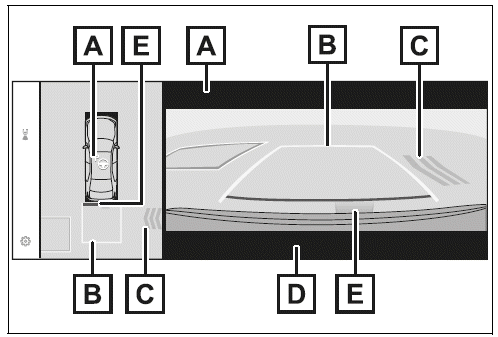

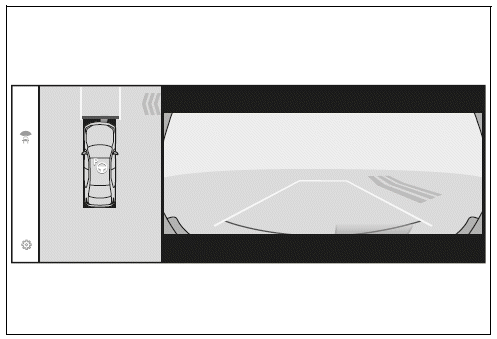

• Guidance screen (When reversing)

1. Operation icon

Displayed when the Advanced Park is operating.

2. Guide lines (yellow and red)

Display points from the center of the edge of the front or rear bumper to the target stopping position (yellow)* and approximately 1 ft. (0.3 m) (red) from the vehicle.

3. Moving object warning icon
4. Emergency support brake control operation display "BRAKE!" is displayed.
5. Intuitive parking assist display

*: The yellow lateral line is not displayed when the target stopping position is approximately 8.2 ft.

(2.5 m) or more away from the vehicle.

Additional Features and Information About Toyota Teammate Advanced Park

Intuitive Parking Assist Pop-Up Display

Regardless of whether the standard intuitive parking assist system is active or not, if the sensors of the intuitive parking assist detect an object while the Toyota Teammate Advanced Park is in operation, an alert will automatically pop up on the multimedia display, overlaying the regular Advanced Park guidance screen. This ensures you are immediately aware of any detected obstacles.

Brake Control Operation During Advanced Park

While the Advanced Park system is actively guiding your 2025 Toyota bZ4X into a parking space, if the system detects a high possibility of a collision with a moving or stationary object, it will automatically engage both the EV system output restriction control to limit power and the brake control to slow or stop the vehicle.

If the brake control is activated by the Advanced Park system, the automated parking operation will be immediately suspended, and a message will be displayed on the multi-information display in the instrument cluster, informing you of the interruption.

Buzzer Feedback

Please be aware that the audibility of the buzzer alerts from the Advanced Park system can be affected by surrounding noises or sounds originating from other systems within your vehicle. In noisy environments, the buzzer might be more difficult to hear, so it's important to also pay attention to the visual cues on the display.

Troubleshooting a Black Screen During Advanced Park Operation

If the multimedia display in your 2025 Toyota bZ4X shows a black screen while the Advanced Park system is operating, it could indicate that the system is experiencing interference from external radio waves or that a malfunction has occurred within the system itself.

If you have a radio antenna installed near any of the vehicle's cameras, try relocating it as far away from the cameras as possible to minimize potential interference.

If you do not have a radio antenna near a camera, and the black screen persists even after turning the vehicle's power switch off and then restarting the EV system, it is recommended to schedule an inspection of your vehicle at an authorized Toyota dealership to diagnose and resolve the issue.

Perpendicular Parking (Forward/Reverse) Functionality

The perpendicular parking function of the Toyota Teammate Advanced Park, which can assist with both forward and reverse parking, can be utilized if the system is able to successfully detect the target parking space when your 2025 Toyota bZ4X is stopped in close proximity and generally perpendicular to the center of the parking space. Furthermore, depending on the specific conditions of the parking space and the surrounding environment, the Advanced Park system might need to adjust the vehicle's direction of travel multiple times. In such cases, the system will automatically control the gear shift position as part of its assistance to ensure a smooth and accurate parking maneuver.

Parking using the perpendicular parking (forward/ reverse) function

1. Stop the vehicle at a position close and perpendicular to the center of the target parking space.

• If there are parking space lines

1. Approximately 3.3 ft. (1 m)*
2. Approximately 8.2 ft. (2.5 m)*
3. Approximately 19.7 ft. (6 m) or more*
4. Approximately 18.0 ft. (5.5 m) or more*

The system can operate even if there is a parking space line on only one side of the target parking space.

*: This is a reference measurement for detection of a parking space.

Depending on the surrounding environment, detection may not be possible.

• If there is an adjacent parked vehicle

1. Approximately 3.3 ft. (1 m)*
2. Approximately 9.8 ft. (3 m) or more*
3. Approximately 19.7 ft. (6 m) or more*
4. Approximately 18.0 ft. (5.5 m) or more*

The system can operate even if there is a vehicle on only one side of the target parking space.

*: This is a reference measurement for detection of a parking space.

Depending on the surrounding environment, detection may not be possible.

2. Press the Advanced Park main switch and check that a possible parking space is displayed on the multimedia display.

• If a space which your vehicle can be parked is detected, a target parking space box will be displayed.
• If it is possible to parallel park in the space, select the parking space, and then select to change to the parallel parking function.
• If it is possible to change the direction which a parking space is entered, select the parking space, and then select or change the direction.
• Depending on the surrounding environment, it may not be possible to use this function.

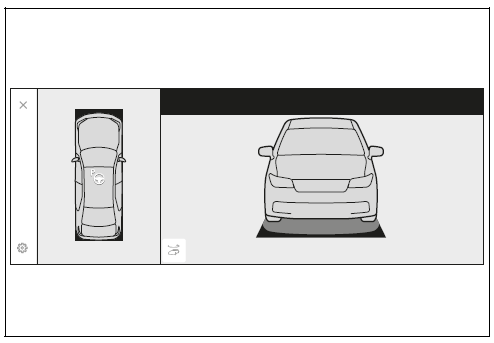

  According to the information displayed on the multimedia display, use the function on another parking space.

3. Select "Start" button.

A buzzer will sound, an operation message will be displayed on the multi-information display, and assistance will begin operating.

• When the brake pedal is released, "Moving Forward...", "Backing Up..." will be displayed and the vehicle will begin moving forward/ reverse.
• To cancel assistance, press the Advanced Park main switch.

If assistance is canceled, "Advanced Park Cancelled" will be displayed.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

4. Perform operations as indicated by the advice displays until the vehicle stops in the target parking space.

When the vehicle stops, "Advanced Park Finished" will be displayed and parking assistance will end.

If you select  on the multimedia display, the vehicle displayed on the parking assist completion screen will rotate.

Responding to Close Proximity to Other Objects During Advanced Park

If you feel that your 2025 Toyota bZ4X is getting too close to a surrounding vehicle, object, person, or even a gutter while Advanced Park is operating, you should immediately depress the brake pedal to stop the vehicle. You can then change the gear shift position to alter the vehicle's direction as needed. At this point, the automated parking assistance will be temporarily suspended. However, if you then select the "Start" button on the Advanced Park interface, the system will resume its assistance, and the vehicle will move according to the currently selected gear shift position.

Audible Brake Operation During Advanced Park

When the Advanced Park system applies the brakes in your 2025 Toyota bZ4X, you might hear a brake operation sound. This is a normal part of the system's function and does not indicate any malfunction or issue with the vehicle.

NOTICE - Important Considerations for Perpendicular Parking (Forward/Reverse) with Advanced Park

• When using the perpendicular parking (forward or reverse) function of Advanced Park in your 2025 Toyota bZ4X, ensure that there are no obstructions present within the yellow guide lines displayed on the screen or in the space between your vehicle and the intended target parking spot. If any obstructions are identified, it is important to cancel the parking function to prevent potential issues.
• The perpendicular parking function of Advanced Park might not operate correctly on parking spaces that are located on a slope or have significant differences in height across the parking area. Using the system in such locations could cause your vehicle to stray from the target parking space or end up parked at an undesirable angle. Therefore, it is advised not to use this function for parking spots with uneven surfaces.
• When parking in a particularly narrow parking space using Advanced Park, your 2025 Toyota bZ4X might get very close to an adjacent parked vehicle. If a collision appears likely at any point during the maneuver, you should immediately depress the brake pedal to stop the vehicle and take manual control.
• If a parked vehicle that is detected by the system is narrow in width or is parked extremely close to the curb, the position at which Advanced Park will maneuver your 2025 Toyota bZ4X might also be very close to the curb. If it seems likely that your vehicle might collide with something or drive off the edge of the road, immediately depress the brake pedal to stop the vehicle and then press the Advanced Park main switch to disable the system entirely.

Advanced Park Perpendicular Exiting (Forward/Reverse) Function

When you wish to exit from a perpendicular parking space, the Advanced Park system in your 2025 Toyota bZ4X can assist you, whether you intend to exit by moving forward or in reverse. The perpendicular exiting function will become available if the system determines that a safe exit is possible based on the surrounding environment. Additionally, if the system deems it necessary to change the vehicle's direction of travel during the exit maneuver, it will automatically manage the gear shift position as part of its assistance.

Toyota Teammate Advanced Park provides a comprehensive suite of features designed to simplify and enhance your parking experience in the 2025 Toyota bZ4X.

Leaving a parking space using the perpendicular exiting (forward/reverse) function

1. With the brake pedal depressed and P shift position selected, press the Advanced Park main switch and check that the exit direction selection screen is displayed on the multimedia display.

2. Select an arrow on the multimedia display to select the direction you wish to exit.

If the turn signal lever is operated, only exit to the left or right can be selected.

3. Depress the brake pedal and select "Start" button.

A buzzer will sound, an operation message will be displayed on the multi-information display, and assistance will begin operating.

To cancel assistance, press the Advanced Park main switch. If assistance is canceled, "Advanced Park Cancelled" will be displayed.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

4. Perform operations as indicated by the advice displays until the vehicle is in a position where exit is possible.

When the vehicle reaches a position where exit is possible, "You can exit by moving the steering wheel" will be displayed. If the steering wheel is operated, "Advanced Park Finished" will be displayed and assistance will end. As assistance will end while the vehicle is moving, grip the steering wheel and drive forward.

If the steering wheel is not operated, the vehicle will stop at the exit position. Assistance can be ended by depressing the accelerator pedal or brake pedal.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

Perpendicular exiting (forward/ reverse) function

Do not use exiting (forward/ reverse) function in any situation other than when exiting a parallel parking spot. If assistance is started unintentionally, depress the brake pedal and stop the vehicle, then press the Advanced Park main switch to cancel assistance.

Situations in which the perpendicular exiting (forward/reverse) function will not operate

In situations such as the following, the perpendicular exiting (forward/ reverse) function will not operate:

• When a vehicle which is waiting to park is in the exit direction

• When a wall, column, or person is detected as near a front or rear center or corner sensor

When the brakes have been operated

Advanced Park Parallel parking function

The parallel parking function can be used if the target parking space can be detected when the vehicle is stopped close and aligned with the center of the parking space. Also, depending on the condition of the parking space, etc., if it is necessary to change the direction of travel of the vehicle, the shift position can be changed by assistance control.

Parking using the parallel parking function

1. Stop the vehicle with it aligned near the center of the target parking space.

• If there are parking space lines

1. Approximately 3.3 ft. (1 m)*
2. Approximately 19.7 ft. (6 m)*
3. Approximately 14.8 ft. (4.5 m) or more*
4. Approximately 26.2 ft. (8 m) or more*

*: This is a reference measurement for detection of a parking space.

Depending on the surrounding environment, detection may not be possible.

• If there is an adjacent parked vehicle

1. Approximately 3.3 ft. (1 m)*
2. Approximately 23.0 ft. (7 m) or more*
3. Approximately 14.8 ft. (4.5 m) or more*
4. Approximately 26.2 ft. (8 m) or more*

*: This is a reference measurement for detection of a parking space.

Depending on the surrounding environment, detection may not be possible.

2. Press the Advanced Park main switch and check that a possible parking space is displayed on the multimedia display.

• If a space which your vehicle can be parked is detected, a target parking space box will be displayed.
•  If it is possible to perpendicular parking (forward/reverse) in the space, select the parking space, and then select to change to the perpendicular parking (forward/reverse) function.
•  Depending on the surrounding environment, it may not be possible to use this function.

  According to the information displayed on the multimedia display, use the function on another parking space.

3. Select "Start" button.

A buzzer will sound, an operation message will be displayed on the multi-information display, and assisassistance will begin operating.

• When the brake pedal is released, "Moving Forward..." will be displayed and the vehicle will begin moving forward.
• To cancel assistance, press the Advanced Park main switch.

If assistance is canceled, "Advanced Park Cancelled" will be displayed.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

4. Perform operations as indicated by the advice displays until the vehicle stops in the target parking space.

When the vehicle stops, "Advanced Park Finished" will be displayed and parking assistance will end.

If you select on the multimedia display, the vehicle displayed on the parking assist completion screen will rotate.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

If "No available parking space" is displayed

Even if the vehicle is stopped parallel to a parking space, an adjacent parked vehicle may not be detected.

In this case, if the vehicle is moved to a position that a parked vehicle can be detected, assistance can be started.

When the brakes have been operated

NOTICE

When using the parallel parking function

• Make sure that there are no obstructions within the yellow guide lines and between the vehicle and target parking spot.

  If any obstructions are detected within the yellow guide lines or between the vehicle and the target parking space, the parallel parking function will be cancelled or suspended.

• As the target parking space will not be able to be set correctly if the surface of the parking space is on a slope or has differences in height, the vehicle may stray from the target parking space or be slanted. Therefore, do not use the parallel parking function for this kind of parking spot.
• If an adjacent parked vehicle is narrow or parked extremely close to the curb, the position at which assistance will park the vehicle will also be close to the curb. If it seems likely the vehicle will collide with the curb or drive off of the road, depress the brake pedal to stop the vehicle, and then press the Advanced Park main switch to disable the system.

• If there is a wall or other barrier on the inner side of the parking space, the vehicle may stop at a position slightly outside of the set target parking space.

Advanced Park Parallel exiting function

When exiting from a parallel parking space, if the system determines that exit is possible the parallel exiting function can be used. Also, depending on the surrounding environment, if it is necessary to change the direction of travel of the vehicle, the shift position can be changed by assistance control.

Leaving a parking space using the parallel exiting function

1. With the brake pedal depressed and P shift position selected, press the Advanced Park main switch and check that the exit direction selection screen is displayed on the multimedia display.

2. Select an arrow on the multimedia display to select the direction you wish to exit.

If the turn signal lever is operated, only exit to the left or right can be selected.

3. Depress the brake pedal and select "Start" button.

A buzzer will sound, an operation message will be displayed on the multi-information display, and assistance will begin operating.

To cancel assistance, press the Advanced Park main switch.

If assistance is canceled, "Advanced Park Cancelled" will be displayed.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

4. Perform operations as indicated by the advice displays until the vehicle is in a position where exit is possible.

When the vehicle reaches a position where exit is possible, "You can exit by moving the steering wheel" will be displayed. If the steering wheel is operated, "Advanced Park Finished" will be displayed and assistance will end. As assistance will end while the vehicle is moving, grip the steering wheel and drive forward.

If the steering wheel is not operated, the vehicle will stop at the exit position.

Assistance can be ended by depressing the accelerator pedal or brake pedal.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

Parallel exiting function

Do not use parallel exiting function in any situation other than when exiting a parallel parking spot. If assistance is started unintentionally, depress the brake pedal and stop the vehicle, then press the Advanced Park main switch to cancel assistance.

Situations in which the parallel exiting function will not operate

In situations such as the following, the parallel exiting function will not operate:

• When vehicles waiting at a traffic signal in the exit direction

• When a vehicle is stopped in the area behind where the vehicle will exit

• When a wall, column, or person is detected as near a front or rear side sensor

• When the vehicle has been parked on a curb and a side sensor detects the road surface

• When a vehicle is not parked in front of the vehicle
• When there is excessive space between the front of the vehicle and a parked vehicle

When the brakes have been operated

Advanced Park Memory  function

The memory function can be used to park in a previously registered parking space, even if there are no parking space lines or adjacent parked vehicles.

Up to 3 parking spaces can be registered.

Registering a parking space

1. Stop the vehicle with it aligned near the center of the target parking space.

1. Approximately 3.3 ft. (1 m)

2. Press the main switch and then select

If the Advanced Park main switch is pressed at a parking space without parking lines or any adjacent parked vehicles, "No available parking space" may be displayed.

Continuously select and hold

3. Select perpendicular parking (forward/reverse) function or parallel parking function.

Only parking spaces for which assist can be performed are displayed.

4. Select the parking direction.

When perpendicular parking (forward/ reverse) was selected in step 3:

When parallel parking was selected in step 3:

5. Using the arrow buttons, adjust the position of the parking space to be regisregistered, and then select "OK" button.

6. Select "Start" button.

A buzzer will sound, an operation message will be displayed on the multi-information display, and assistance will begin operating.

When the brake pedal is released, "Moving Forward..." will be displayed and the vehicle will begin moving forward.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

7. Perform operations as indicated by the advice displays until the vehicle stops in the target parking space.
8. Check the position that the vehicle has stopped. If necessary, adjust the position of the parking spot to be registered using the arrow buttons, and then select "Reg." button.

"Registration Completed" will be displayed on the multimedia display.

• Register the parking space only if there are no obstructions within the area shown by the thick lines.
• The amount that the position of the parking spot to be registered can be adjusted is limited.

When parking in a parking space registered to the memory function

1. Stop the vehicle with it aligned near the center of the target parking space.

1. Approximately 3.3 ft. (1 m)

2. Press the Advanced Park main switch and check that a possible parking space is displayed on the multimedia display.

If the "MODE" button is displayed, the button can be touched to change between the memory function, perpendicular parking (forward/ reverse) function and parallel parking function.

3. Select the desired parking space, and then select "Start" button.

Perform the procedure for the perpendicular parking (forward/ reverse) function from step 3.

If you feel that the vehicle is approaching close to a surrounding vehicle, object, person, or gutter

When overwriting a registered parking space

If the maximum number of parking spaces have been registered and is selected, a registered parking space can be selected and then overwritten with a new parking space.

When multiple parking spaces are registered

Select the desired parking space, and then select "Start" button.

When the Brakes Are Applied During Advanced Park

When the brakes are applied by the driver while Toyota Teammate Advanced Park is in operation in your 2025 Toyota bZ4X, you might hear a sound related to the brake operation. This is a normal occurrence and does not indicate any malfunction within the braking system or the Advanced Park feature.

NOTICE - Important Information Regarding the Memory Function of Advanced Park

• The memory function in your 2025 Toyota bZ4X's Advanced Park system allows you to register specific parking spaces for easier automated parking in the future. However, if the conditions of the road surface, your vehicle, or the surrounding area are different from when you initially registered the parking space, the system might not be able to accurately detect the space, or it might not provide complete assistance to fully park your vehicle in the memorized location.
• Avoid registering a parking space using the memory function in the following situations, as it might prevent successful registration or hinder assistance later on:

• When the camera lens is dirty or has water droplets on it, as this can obstruct the view.
• During rain or snowfall, which can affect the camera's visibility and road surface recognition.
• When the surrounding area is very dark, such as at night or in poorly lit areas.

• In the following situations, you might not be able to successfully register a parking space in the system's memory:

• When there is insufficient space between the road and the parking spot to perform the registration procedure.
• When the road surface around the parking space lacks any distinguishable features that the system can recognize as a reference.

• If a parking space has been registered under any of the following conditions, the system might not be able to initiate assistance later, or it might not guide you correctly to the registered parking position:

• When shadows are cast over the parking space, such as from a carport or nearby trees, as this can alter the visual appearance.

• When there are leaves, garbage, or other objects that are likely to move within the parking space, as these can confuse the system.
• When the road surface around the parking space has a highly repetitive pattern, like bricks, which can make it difficult for the system to pinpoint the exact location.

• In the following situations, the system might not be able to provide assistance to a registered parking spot:

• When the appearance of the parking space is affected by shadows from your vehicle or nearby trees.
• When an object is detected within the registered parking space that wasn't there during registration.
• When a pedestrian or another vehicle passes by while the system is attempting to provide assistance.
• When the position where you stop your vehicle to start the assistance differs significantly from the position where you were when you originally registered the parking space.
• When the registered parking space has become inaccessible due to the presence of parking blocks or other obstacles.
• When the road surface around the parking space has changed since registration, such as due to degradation or resurfacing.
• When the lighting conditions from sunlight are different from those present during the registration process, due to changes in weather or time of day.
• When direct sunlight is shining into one of the vehicle's cameras, such as during early morning or late evening.
• When there are significant variations in the color or brightness of the road surface around the parking space.
• When a light source is temporarily shining on the parking space, such as from another vehicle's headlights or a security light.
• When the road surface around the parking space has a repetitive pattern.
• When there is a low-lying protrusion on the road surface near the parking space that wasn't present during registration.
• When the parking space is located on a slope or uneven surface.
• When a camera has been splashed with hot or cold water, causing the lens to fog up and obstruct the view.
• When a camera lens is dirty or has water droplets on it.
• When accessories that obstruct the view of the camera have been installed since registration.

NOTICE

If the registration process for the memory function is interrupted or ended prematurely, you will need to perform the registration again from the beginning.

• When attempting to register a parking space using the memory function, if the road surface cannot be clearly detected by the system, a message indicating "No available parking space to register" will be displayed on the screen.
• When using the memory function to park in a registered space, ensure that you stop your vehicle immediately in front of the designated starting position indicated by the system. Failing to do so might result in the parking space not being correctly detected, or the system might not provide complete assistance to fully park your vehicle.
• Do not use the memory function if any of the vehicle's cameras have sustained a strong impact or if the images displayed on the panoramic view monitor appear misaligned or distorted.
• If any of the vehicle's cameras have been replaced, the installation angle will likely have changed. Therefore, it will be necessary to re-register all previously saved parking spaces in the memory function to ensure accurate parking assistance.

Advanced Park Cancellation and Suspension When Assistance Will Be Canceled

In the following situations, the Toyota Teammate Advanced Park operation in your 2025 Toyota bZ4X will be canceled. If this occurs, firmly grip the steering wheel and depress the brake pedal to bring the vehicle to a stop.

Once the system operation has been canceled, you will need to either begin the Advanced Park process again from the start or manually park the vehicle using the steering wheel and pedals.

• The Advanced Park main switch is pressed by the driver.
• The gear shift position is manually changed to 'P' (Park).
• The parking brake is manually engaged.
• Any of the vehicle's doors or the back door/liftgate is opened.
• The driver's seat belt is unfastened while the system is operating.
• The outside rearview mirrors are manually folded in by the driver.
• The Traction Control (TRAC) system or Vehicle Stability Control (VSC) system is manually turned off.
• The TRAC, VSC, or Anti-lock Braking System (ABS) activates automatically.
• The vehicle's power switch is pressed to turn off the vehicle.
• The system determines that it cannot continue providing parking assistance due to the current parking environment or unforeseen circumstances.
• The Advanced Park system detects a malfunction.
• While the vehicle was stopped during an Advanced Park maneuver, the "Cancel" option was selected on the multimedia display screen.

When Assistance Will Be Suspended

In the following situations, the Toyota Teammate Advanced Park operation will be temporarily suspended.

You can typically resume the assistance by following the instructions that will be displayed on the multimedia screen. Pay close attention to these prompts to continue the parking maneuver.

Also, when the assistance is suspended, if you change the gear shift position twice while keeping the brake pedal depressed, the assistance will be completely canceled for that specific parking attempt. However, if the assistance is initially suspended due to a change in the gear shift position by the driver, assistance will be canceled if the shift position is changed even once more.

• The driver manually operates the steering wheel during the automated parking process.
• The driver depresses the accelerator pedal, overriding the system's speed control.
• The gear shift position is manually changed by the driver.
• A moving object or a stationary object that the system perceives as a potential collision risk has been detected, leading to the activation of the EV system output control or the braking control of the Advanced Park system.
• The Camera switch (if equipped) is pressed by the driver.

Changing the Advanced Park settings

Select on the multimedia display, and then select "Advanced Park".

Customizing Your Toyota Teammate Advanced Park Settings

The Toyota Teammate Advanced Park system in your 2025 Toyota bZ4X offers several customizable settings to tailor the parking assistance to your preferences and needs:

Speed Profile

You can adjust the vehicle's speed at which the automated parking assistance is performed. This allows you to choose a speed that feels comfortable for you during the parking maneuver.

Please note that the speed profile setting cannot be modified when you are registering a parking space to the memory function.

Obstacle Detection Range

You have the option to set the distance at which the Advanced Park system will begin to take action to avoid obstacles detected around your vehicle during parking assistance.

Preferred Parking Method

When you are near a parking space where both perpendicular (forward/reverse) and parallel parking are feasible options, you can set your preferred parking direction to be displayed by the system.

Preferred Parking Direction (Perpendicular)

You can specifically select whether you prefer the system to initially suggest pulling into a perpendicular parking space in a forward or reverse direction when both options are available.

Preferred Exit Direction (Perpendicular)

When exiting from a perpendicular parking space, you can set your preference for the system to initially suggest exiting by moving forward or reversing, and to which side (left or right).

Preferred Exit Direction (Parallel)

Similarly, when exiting from a parallel parking space, you can choose your preferred direction – left or right – for the system to suggest.

Camera View When Parking

You can adjust the displayed angle of the camera image that appears on the multimedia screen when you are using the perpendicular parking (forward/reverse) or parallel parking functions. This allows you to optimize the view for better situational awareness.

Camera View When Exiting

Likewise, you can configure the preferred display angle of the camera image when utilizing the perpendicular exiting (forward/reverse) or parallel parking exit functions.

Parking Path Adjustment

The trajectory that the vehicle follows during automated parking assistance can be fine-tuned to be slightly more inward or outward within the parking space. This can be useful for personalizing the final parking position.

If your vehicle's tires are worn, you might notice that the parking path is slightly offset from the center of the parking space. In such cases, you can use the Parking Path Adjustment setting to compensate for this and center the vehicle more accurately.

Road Width Adjustment

When parking assistance begins, you can adjust the initial amount of lateral movement that the vehicle makes while moving forward to approach the parking space. This can be helpful in different parking environments.

Park Position Adjustment (Forward)

You can slightly adjust the final position at which perpendicular parking (when driving forward into the space) is completed. This setting is not available when using the memory function for parking.

Park Position Adjustment (Reverse)

Similarly, you can fine-tune the final position after perpendicular parking is completed when reversing into the space. This adjustment is also not available when using the memory function.

Rear Accessory Setting

If you have installed a rear accessory such as a trailer hitch to your 2025 Toyota bZ4X, you can adjust the system to account for the added length at the rear of the vehicle. This helps the Parking Support Brake and Advanced Park systems avoid potential collisions with objects located behind your vehicle.

Clear Registered Parking Space

You have the ability to delete parking spaces that you have previously registered to the memory function. Please note that you cannot delete parking space information while the Advanced Park system is actively providing assistance or while you are in the process of registering new parking spaces to the memory function.

NOTICE - Important Considerations for Park Position Adjustments

• Exercise caution when using the park position adjustment (forward) or park position adjustment (reverse) features. Incorrect adjustments could lead to your vehicle colliding with parking blocks, curb stones, or other low-lying objects.
• If you believe that your vehicle is at risk of colliding with a nearby vehicle, object, parking block, or curb stone, immediately depress the brake pedal to stop the vehicle and then press the Advanced Park main switch to disable the system entirely.

Advanced Park Displayed Messages

The current operating status, the steps of the assistance process, and other relevant information about Toyota Teammate Advanced Park will be displayed on the multimedia screen in your 2025 Toyota bZ4X. If a message appears, it is important to read it carefully and respond according to the instructions provided on the screen.

If "No available parking space" is displayed

This message indicates that the system could not detect a suitable parking space or parking lines in the current location. Try moving your vehicle to a different spot where a parking space or clear parking lines are more readily detectable.

If "Unavailable in current condition" is displayed

This message suggests that the Advanced Park system cannot be used in the current situation due to various environmental or vehicle-related factors. Try moving your vehicle to another location and attempting to use the system there.

If "Not enough space to exit" is displayed

This message appears specifically when using the parallel parking exit function. It indicates that the system has determined that there is insufficient space to perform an automated exit, possibly due to the close proximity of vehicles parked in front and behind yours or the presence of an obstruction in your intended exit path. In such cases, you will need to manually check the area around your vehicle and exit the parking space yourself.

If "Cannot control speed" is displayed

This message indicates that the Advanced Park system has detected that it cannot accurately control the vehicle's speed, typically when operating on a slope or a surface with steps or significant inclines. As a result, the automated parking assistance has been canceled. It is recommended to use the system on a level surface to ensure proper speed control.

If "Obstacle detected" is displayed

This message appears when the system's sensors have detected a moving or stationary object in close proximity to your vehicle that poses a potential collision risk. In response, the EV system output control and/or braking control of the Advanced Park system will activate, and the automated assistance will be temporarily suspended. Carefully check the surrounding area for any obstacles. To resume the parking assistance, select the "Start" button on the multimedia display.

If "No available parking space to register" is displayed

This specific message appears when you select the option to register a parking space (indicated by a specific icon) in a location where the system cannot detect suitable features on the road surface to define a parking space. To register a parking space, ensure you are in a location where the system can recognize differences in the road surface that delineate the parking area.
