Toyota bZ4X Owner's Manual: Opening and Closing the Windows

Power Windows

Opening and Closing the Power Windows

Power windows provide a modern and convenient way to control your vehicle’s side windows with minimal effort. The system is engineered to respond instantly to your commands-whether you need to quickly lower them for fresh air or raise them for enhanced security and noise reduction.

Activating the switches operates the power windows as follows:

• Raising the Window: When you press the switch to close the window, the window smoothly glides upward, ensuring a firm seal that minimizes wind noise and keeps out dust and inclement weather.
• Lowering the Window: Conversely, pressing the switch to open the window initiates a controlled descent that enhances cabin ventilation and creates a refreshing environment, especially on warm days.

This intuitive operation not only boosts passenger comfort but also incorporates key safety features such as an auto-reverse mechanism. This function is designed to immediately halt and retract the window if an obstacle is detected, thereby reducing the risk of injury or damage.

Moreover, maintaining optimal performance of the power window system can be achieved by periodically cleaning the window tracks and ensuring that all electrical components are in excellent condition. This regular care helps prevent potential issues such as window sticking or delayed responses.

Embracing such advanced technology, modern vehicles are designed to merge practicality with safety. The integration of power windows facilitates an effortless balance between comfort and control, tailoring the driving experience to suit various weather conditions and personal preferences. Innovative models like the Toyota bZ4X showcase how these features are woven into the fabric of automotive design, ensuring not only a pleasant ride but also superior operational reliability.

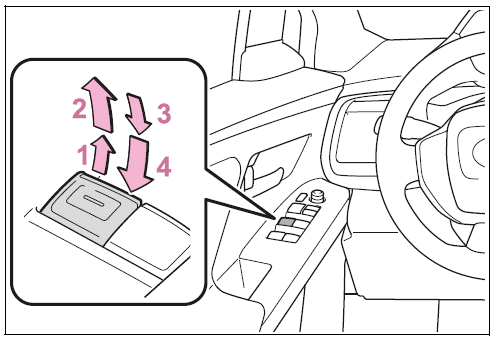

1. Closing
2. One-touch closing*
3. Opening
4. One-touch opening*

*: To stop the side window partway, operate the switch in the opposite direction.

POWER WINDOWS: OPERATION AND SAFETY

The power windows in your vehicle offer a blend of modern convenience and enhanced safety. They operate when the power switch is in the ON position, and even after turning the EV system off, they remain functional for approximately 45 seconds-as long as the front doors remain closed.

OPERATING CONDITIONS AND SAFETY FUNCTIONS

The system includes advanced safety features designed to protect against injury:

• Jam Protection Function: If an object becomes lodged between the side window and the window frame during closing, the movement stops immediately and the window reopens slightly to prevent injury.
• Catch Protection Function: If something is caught between the door and the side window during opening, the window stops to avert harm.

TROUBLESHOOTING WINDOW OPERATION

In cases where the window does not respond normally after the jam or catch protection functions have activated, follow these steps using the power window switch for the affected door:

• Ensure the vehicle is safely stopped with the power switch in the ON position. Within 4 seconds of the protection function activating, continuously operate the power window switch in the one-touch closing (or opening) direction to restore normal function.
• If the window still doesn’t operate properly, perform a function initialization using this sequence:
  1. Turn the power switch to ON.
  2. Press and hold the power window switch in the one-touch closing direction until the side window is completely closed.
  3. Release the switch briefly, then resume pressing in the one-touch closing direction for approximately 6 seconds or more.
  4. Press and hold the switch in the one-touch opening direction until the window is fully open; continue holding for an additional second or more.
  5. Release the switch momentarily, then press in the one-touch opening direction again and hold for roughly 4 seconds or more.
  6. Finally, press and hold the switch in the one-touch closing direction once more. After the window is completely closed, maintain the pressure for an extra second or more.
• If the switch is released while the window is moving, you must restart the sequence from the beginning. Should the window reverse or fail to fully open or close after these procedures, have the vehicle inspected by your dealer immediately.

ADDITIONAL POWER WINDOW FUNCTIONS

• Door Lock Linked Operation: The power windows can also be operated using a mechanical key or wireless remote control. Note that using the door lock linked operation while the alarm is set may trigger the alarm. These settings can be customized by your dealer.
• Power Window Open Reminder: When the power switch is turned to OFF and the driver's door opens while the windows are still open, a buzzer sounds and a message appears on the multi-information display to alert you.
• Speech Command Operation: For added convenience, the power windows can be controlled via the speech command system.
• Customization: Several functions of the power window system can be tailored to your preferences through dealer customization.

WARNING – SAFE OPERATION OF POWER WINDOWS

Observe the following precautions. Failure to do so may result in death or serious injury:

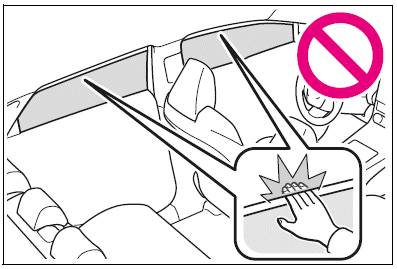

• The driver is responsible for all power window operations, including those for the passengers. To prevent accidental activation-especially by children-never allow a child to operate the power windows, as their body parts could become trapped.
• Always check that no passenger has any part of their body positioned within the window’s path before operating the windows.

Pro Tip: Regularly inspect the window tracks and switch mechanisms to ensure smooth operation. Routine maintenance not only prolongs the life of the system but also enhances safety by reducing the risk of unexpected malfunctions.

This seamless integration of convenience and safety is a hallmark of modern automotive design and is exemplified in advanced models such as the Toyota bZ4X-offering drivers an ideal blend of comfort, control, and sophisticated technology.

WARNING – WIRELESS REMOTE AND MECHANICAL KEY OPERATIONS

When using the wireless remote control or mechanical key to operate the power windows, always verify that no passenger’s hand, finger, or other body part can be caught in the window's path. It is crucial to ensure an unobstructed clearance before activation. Moreover, do not allow children to use these controls, as accidental operation could cause serious injuries.

EXITING THE VEHICLE SAFELY

Before exiting the vehicle, turn the power switch to OFF, secure your key, and then leave the vehicle together with any child passengers. This precaution helps prevent accidental window activation due to mischief or unintended button presses.

JAM PROTECTION FUNCTION – USE WITH CARE

The jam protection function is designed to halt the window’s movement immediately if an object becomes lodged between the side window and its frame. However, never purposely use any body part to activate this function. Be aware that if an obstruction is detected just before the window is fully closed, the jam protection feature might not fully engage, so exercise extra caution to avoid any part of your body being trapped.

CATCH PROTECTION FUNCTION – IMPORTANT SAFETY REMINDER

Similarly, the catch protection function stops the window if an object gets caught as it opens. Do not intentionally use your body or clothing to trigger this safety mechanism. If something is caught just before the window reaches its full open position, the function might not work as intended, possibly putting you or your belongings at risk.

PREVENTING ACCIDENTAL OPERATION WITH THE WINDOW LOCK SWITCH

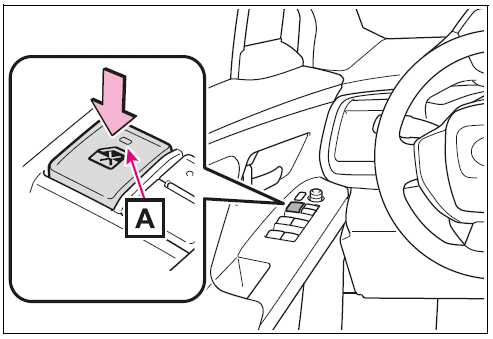

To minimize the risk of unintended windows operation-especially by curious children-engage the window lock switch (Function A). Once activated, an indicator (A) will illuminate, ensuring that the passenger windows remain locked. Despite this, the driver retains full control, as the driver’s switch can still operate the windows even when the lock is engaged.

Regularly checking and maintaining these systems is essential for ensuring the safety of every journey. Encourage all passengers to understand and adhere to these precautions to prevent inadvertent injuries.

For optimal safety and convenience, always keep your vehicle's safety systems in top working condition. Advanced safety features, as integrated in a premium model like the Toyota bZ4X, exemplify the fusion of innovative technology and robust design-ensuring peace of mind and a secure driving experience.

OPERATION OF THE WINDOW LOCK SWITCH

The window lock switch can be operated when the power switch is in the ON position. Note that when the 12-volt battery is disconnected, the window lock switch becomes disabled. After reconnecting the 12-volt battery, press the window lock switch to re-enable it.

MY SETTINGS – PERSONALIZED DRIVER PREFERENCES

With the "My Settings" feature, your vehicle recognizes you through an authentication device-such as an electronic key-and automatically recalls personalized settings when you enter. This cutting-edge system can store configurations for up to three drivers, ensuring that every time you step inside, your preferred seating position, mirror adjustments, multimedia displays, and safety support functions are restored without any manual intervention.

TYPES OF ASSIGNED AUTHENTICATION DEVICES

An individual can be identified using one or more of the following devices:

• Electronic Key: The Smart Key system detects your electronic key for swift identification.
• Face Identification^*: A driver monitor detects your face, ensuring secure and seamless access.
• Bluetooth Devices: If the same Bluetooth device used as a hands-free phone during your last entry is connected to the multimedia system, the system will recognize you-unless identification has already taken place via the electronic key.

RECALLED FUNCTIONS UPON IDENTIFICATION

Once you are identified by an authentication device, the vehicle automatically recalls the settings that were in use when the power switch was last turned off. The following functions are restored:

• Meter Displays and Multimedia Information: Your preferred dashboard and display configurations are reactivated.
• Vehicle Settings via Multimedia Display^*: All personalized configurations that were set on the multimedia interface are recalled.
• Safe Driving Support Functions^*: Driver-assist and safety features are re-enabled to match your previously saved settings.

This advanced personalization technology not only enhances convenience and comfort but also contributes to an elevated driving experience by reducing setup time and ensuring that your vehicle environment is always tailored to you. For instance, innovative vehicles like the Toyota bZ4X demonstrate how integrating personalized settings into the overall system architecture can transform every drive.

* Functionality may vary and can be customized. Please consult your dealer for more details.
