Toyota bZ4X Owner's Manual: Child restraint system fixed with a child restraint LATCH anchor

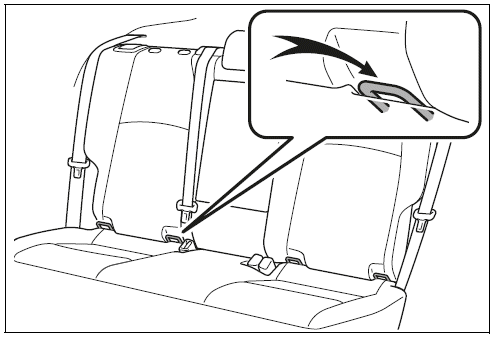

Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats.
When installing in the rear outboard seats
Install the child restraint system
in accordance to the operation manual enclosed with the child
restraint system.
- Adjust the seat
If there is a gap between the child
restraint system and the seatback,
adjust the seatback angle until
good contact is achieved.

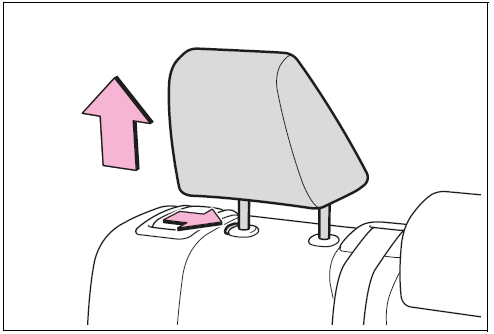

- If the head restraint interferes
with the child restraint system
installation and the head
restraint can be removed,
remove the head restraint.

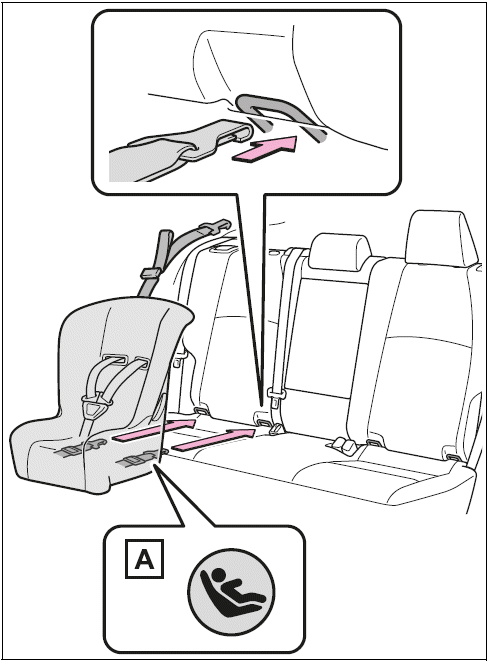

- With flexible lower attachments
- Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The symbol on a child
restraint system indicates (A) the presence of a lower
connector
system.
- Canada only

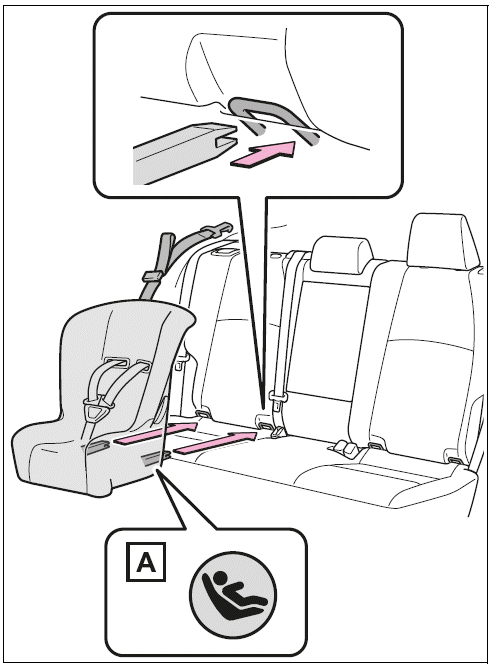

- With rigid lower attachments
- Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child
restraint system indicates (A) the presence of a
lower connector
system.
- Canada only
- If the child restraint has a top
tether strap, follow the child
restraint manufacturer's
operation manual regarding
the installation, using the top
tether strap to latch onto the
top tether strap anchor.
- After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely.
WARNING
When installing a child
restraint system
Important Child Restraint System Precautions
Ensuring proper installation and usage of child restraint systems is crucial for passenger safety in your Toyota bZ4X. Failure to follow these guidelines may result in severe injury or fatal consequences.
- When using the LATCH anchors, ensure there are no foreign objects around the anchor points and that the seat belt is not trapped behind the child restraint system.
- Always follow the installation instructions provided by the child restraint system manufacturer to guarantee secure attachment.
- Child restraint systems cannot be installed in the rear center seat. Do not attempt to use LATCH anchors for child seat installation in this position.
- Some types of child restraint systems may affect the proper use of adjacent seat belts in rear seating positions. If your seat belt does not fit securely across your shoulder and hips due to a nearby child restraint, adjust your seating position accordingly to maintain protection.
- After adjusting the seat, always recheck the security of the child restraint system to confirm proper positioning and attachment.
By following these precautions, you can enhance the effectiveness of child restraint systems and create a safer environment for young passengers in your Toyota bZ4X.
Ensuring the safety of children while riding in your Toyota bZ4X requires careful attention to seating positions,
restraint systems, and vehicle features designed to prevent accidents. Following ...
Anchor brackets (for top
tether strap)
Anchor brackets are provided
for each rear seat.
Use anchor brackets when fixing
the top tether strap.
Outboard rear seats
Anchor br ...
